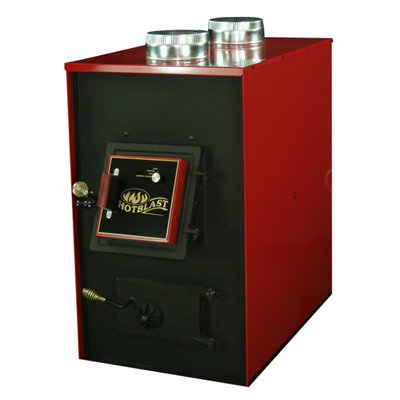

US Stove Wood/Coal Hotblast Furnace with Twin 550 CFM Blowers

The 1500 add on furnace is designed to use in conjunction with your existing HVAC ductwork and work seamlessly with your existing furnace. With twin 550 CFM blowers and up to 139,000BTU's it is designed to heat a home up to 2500 sq. ft. This unit is made with a firebrick lined plate steel firebox surrounded by brilliant red painted steel giving the unit an eye appealing look. Connection to your existing ductwork is easy with the two 8” diameter heat outlets. Available accessories include the Universal filter box Kit.

Features:

• Hotblast furnace
• Installation materials are not included (i.e. floor protector, chimney connector, thimble, radiation shield, flue)
• Twin 550 CFM blowers provide redundancy and large amounts of air flow
• Dual 8" diameter Heat Outlets
• Automatic Bi-Metal draft damper
• Firebrick lined to boost efficiency and heating capacity
• Separate ash door with removable dump pan
• Extra-Heavy duty Cast Iron doors, grates and liners
• Removable/Replaceable shaker grates (handle included)
• Not approved for use in Mobile or Modular homes
• 6" Flue collar
• 26" Log capacity
• Firebox Dimensions: 19.5" H x 20" W x 30.5" D
• Dimensions: 40.25" H x 24.25" W x 40-52.5" D
• Product cannot ship to California, Washington or Oregon
