Part #: 0781-3905
SKU #: VIC5890

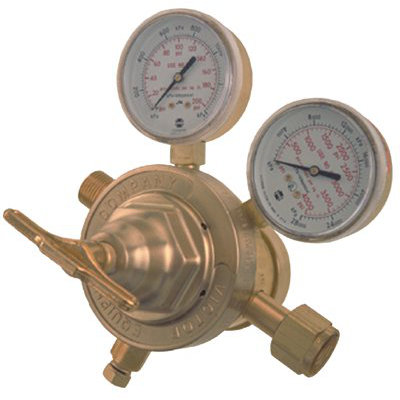

Victor VTS 450 Two Stage Heavy Duty Regulators - vts450d-540 regulator

(

View all from Victor

)

Write the first review
$414.40
List Price: $525.00
You Save:

$110.60 (21%)
rewards ?
Earn $12.43

Free Shipping!
Order in the next and have this item delivered Free by ! More
Delivery Estimates
Guaranteed Delivery By December 24th

Items with the 12/24 Guarantee will be delivered to addresses in the lower 48 states on or before December 24, 2012. This offer does not apply to Alaska, Hawaii, Puerto Rico or Canada.

Any purchase between now and 12/25 can be returned through 1/30.

Qty:
Registry
Wish List

Share:

Product Details
    This item features:
  • Precise and constant outlet pressure
  • Forged brass housing cap
  • Stem type seat mechanism
  • Delrin® cap bushing for smooth adjustments
  • External self reseating relief valve (Not designed to protect downstream apparatus)
  • Inlet Pressure: 3000 psig [Max]
  • Gauge Size: 2 1/2 in
  • Diaphragm Size: 2 in, 3 1/4 in
  • Width: 8 in
  • Height: 8 in
  • Depth: 7 3/8 in
  • Body Material: Forged Brass
  • Diaphragm Material: Stainless Steel
  • Filter Material: Bronze, Sintered
  • Wt.: 7.06 lb
  • Price is for 1 Each
    Testing and approvals:
  • UL listed
  • Conforms to CGA E-4


Model Code  Model Description
AAGas Type:Acetylene, Outlet Pressure:2.0 psig [Min], 15.0 psig [Max], Inlet Connection:CGA 300, Outlet Connection:5/8 in - 18 RH(F)
ABGas Type:Acetylene, Outlet Pressure:2.0 psig [Min], 15.0 psig [Max], Inlet Connection:CGA 510, Outlet Connection:5/8 in - 18 RH(F)
ACGas Type:Air, Oxygen, Inert Gas, Outlet Pressure:10.0 psig [Min], 200.0 psig [Max], Inlet Connection:CGA 540, Outlet Connection:9/16 in - 18 (M)
ADGas Type:Air, Oxygen, Inert Gas, Outlet Pressure:10.0 psig [Min], 200.0 psig [Max], Inlet Connection:CGA 580, Outlet Connection:5/8 in - 18 RH(F)
AEGas Type:Air, Oxygen, Inert Gas, Outlet Pressure:5.0 psig [Min], 125.0 psig [Max], Inlet Connection:CGA 540, Outlet Connection:9/16 in - 18 (M)
AFGas Type:Air, Oxygen, Inert Gas, Outlet Pressure:5.0 psig [Min], 125.0 psig [Max], Inlet Connection:CGA 580, Outlet Connection:5/8 in - 18 RH(F)
AGGas Type:Air, Oxygen, Inert Gas, Outlet Pressure:5.0 psig [Min], 125.0 psig [Max], Inlet Connection:CGA 590, Outlet Connection:5/8 in - 18 LH(F)
AHGas Type:Air, Outlet Pressure:5.0 psig [Min], 125.0 psig [Max], Inlet Connection:CGA 346, Outlet Connection:9/16 in - 18 (M)
AIGas Type:Carbon Dioxide, Nitrous Oxide, Outlet Pressure:5.0 psig [Min], 125.0 psig [Max], Inlet Connection:CGA 320, Outlet Connection:5/8 in - 18 RH(F)
AJGas Type:Methane, Inert Gas, Outlet Pressure:10.0 psig [Min], 200.0 psig [Max], Inlet Connection:CGA 350, Outlet Connection:9/16 in - 18 (M)
AKGas Type:Methane, Inert Gas, Outlet Pressure:5.0 psig [Min], 125.0 psig [Max], Inlet Connection:CGA 350, Outlet Connection:9/16 in - 18 (M)
See something odd? Report it here.

Shipping Info

Free Shipping!
Ships to:
Delivery Estimates
Ships via UPS/FedEx (Learn More)
Weight, Dimensions & Additional Features
Item: Dimensions: Weight:
VTS 450 Two Stage Heavy Duty Regulators - vts450d-540 regulator 8" H x 8" W x 7.375" D 7.39 lbs

Additional Features
Product Category:Other Guns & Torches
Type:Torch & Regulator Parts
Use:Heavy Duty
