This ceiling mount is for use with 1-1/2" pipe or 1/4" threaded rod installation. Black powder paint finish. Dimensions overall measure up to 17"W x 27"D x 16"H. Pitch is 10 degrees, roll is 10 degrees, and yaw is 360 degrees.
Projector is held in place by steel arms, which allow air flow and access to functions on all sides of the projector. Each mount has roll, pitch and yaw adjustments to fine tune your projector. Bretford recommends the use of a professional installer when installing LCD Projector Mounts.

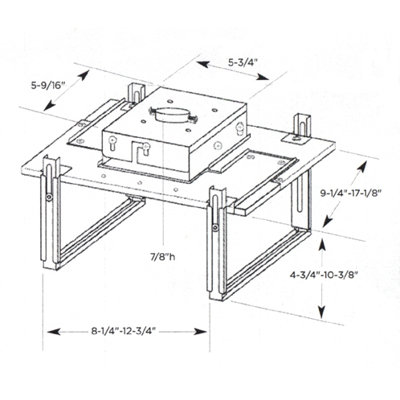

Projector mount will not fit ALL projectors, please check technical drawing below to ensure that your projector will fit within the supplied dimentions.
- Unique design allows for air flow on all sides of the projector
- Features Roll, Pitch & Yaw adjustments for fine tuning the projector, once installed. Pitch = 10 degrees, Roll = 10 degrees, Yaw = 360 degrees
- Unique hanger support system allows one-man installation
- Projector may be mounted right-side up or up-side down
- Easily re-adjusts for exchanging projectors. When you upgrade projectors, you won't have to purchase a new mount

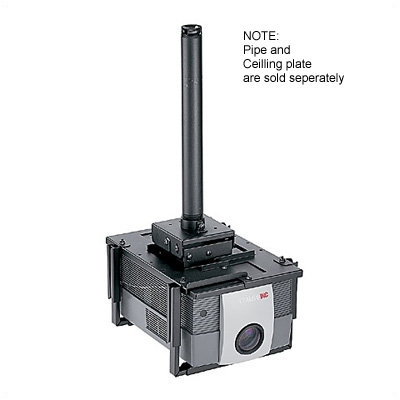

Note: All mounting pipes, rods and accessories sold separately.
Ships via FedEx/UPS
back to top
|Universal Ceiling Projector Mount (For Use w/ Extension Pipe)
||16" H x 17" W x 27" D
|Design:||Outer Clamp Style|
|Product Category:||Projector Mounts|
|Style:||Ceiling Projector Mount|
|Versatility:||Available With Drop From Ceiling|
