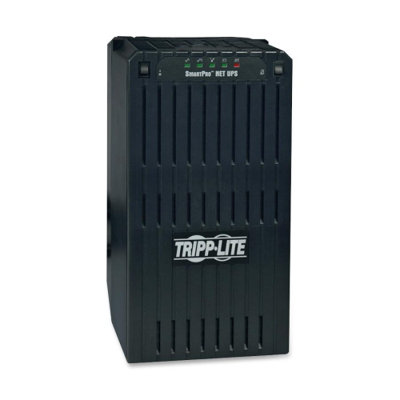

Tripp Lite UPS System, 2200 VA, Backup Time 27Min, 6 Outlet, Black

UPS System with six outlets protects network servers against damage and downtime due to blackouts, brownouts, overvoltages and surges. Advanced automatic voltage regulation keeps servers productive through brownouts and overvoltages without using battery power. Up to three built-in communication ports and intelligent operation provide advanced power monitoring and control when used with included PowerAlert Software. 27 minute backup time is based on half load.

• Product Type: Line-interactive UPS
• Batteries: Sealed Lead Acid
• Color: Gray
• Alarm: On Battery
• Certifications & Standards: UL1778 (USA), cUL (Canada), FCC Class A (emissions), NOM (Mexico), Conforms to IEEE 587 / ANSI C62.41 specifications
• Receptacles: 6 x NEMA 5-15R
• Brand Name: Tripp Lite
• Plug/Connector Type: NEMA 5-15P
• Input Voltage Range: 120 V AC Single-phase
• Filtering: EMI/RFI
• Form Factor: Tower
• Frequency: 60 Hz
• Status Indicators: Includes 5 front panel LEDs to indicate BATTERY CHARGE LEVEL, AC LINE POWER STATUS, VOLTAGE REGULATION STATUS, UPS LOAD LEVEL and BATTERY LOW / REPLACE information
• Humidity: 0 to 95% Non-condensing Relative Humidity
• Load Capacity: 2.20 kVA/1.70 kW
• Manufacturer: Tripp Lite
• Product Name: SmartPro 2200VA UPS
• Modular Slots: 3 x Communications Slot
• Network Management: SNMP Manageable Optional
• Overload Protection: 20A input breaker
• Power Cord/Cable: 96"
• Dimensions: 17" Height x 9" Width x 12.50" Depth
• Product Line: SmartPro
• Surge Energy Rating: 480 J
• Switching Time: 4 ms
• System Requirements: TYPICAL APPLICATIONS: Ideal for the protection of communication equipment including: routers, hubs, switches, IP-PBX, Traditional PBX and Key/Hybrid Telephone Systems. Also ideal for the protection of data processing equipment such as fileservers, workstations and other sensitive devices requiring clean, continuously regulated output power. Extended runtimes are available using additional external battery packs (BP24V33).
• Temperature: 32°F (0°C) to 104°F (40°C) Operating
• Temperature: 5°F (-15°C) to 122°F (50°C) Storage
• Waveform Type: Pulse-width Modulated Sine Wave
• Input Voltage: 110 V AC
• Manufacturer Part Number: SMART2200NET
• Manufacturer Website Address: www.tripplite.com
• Backup/Run Time: 0.18 Hour 2.20 kW Full Load
• Backup/Run Time: 0.45 Hour 1.10 kW Half Load
• Interfaces/Ports: 3 x DB-9
• Battery Life: 26297.44 Hour to 52594.88 Hour
• Battery Recharge Time: 4 Hour
• Package Contents: SMART2200NET UPS System PowerAlert Software CD 3 x 6-ft. network cables Warranty information Instruction manual
• Standard Warranty: 2 Year
• Software Included: PowerAlert Software
• Additional Information: SMART2200NET line interactive UPS offers battery derived AC output during power outages, voltage regulation during brownouts and overvoltages, plus network-grade AC surge suppression 2200VA / 1700 watt power handling capability supports a variety of networking, telecom and other sensitive electronic devices Large internal batteries offer runtimes of 27 minutes at half load (1100VA / 850 watts) and 11 minutes at full load (2200VA / 1700 watts) Runtime is further expandable with optional external BP24V33 battery packs (output VA is de-rated as external battery packs are added, see specifications) Automatic Voltage Regulation (AVR) circuits maintain 120V nominal output over an input voltage range of 87-140V Includes 6 fully protected NEMA 5-15R outlets with 2 single outlet load banks that can be individually powered off and back on again via software interface PowerAlert UPS monitoring and unattended shutdown software enables configurable network broadcast messaging, pager & email notification, event logging and running user defined script commands Offers simultaneous monitoring of up to 3 directly connected devices through included DB9 contact closure and RS-232 enabled interfaces, or the monitoring of any number of additional servers over IP with included PowerAlert monitoring software In addition to the contact closure monitoring of on battery, low battery and power restored messaging, built-in RS-232 interface supports messaging of UPS and line power status, including AC line voltage, DC battery voltage and remaining battery capacity Supports activate self-test and UPS output power control for scheduled or immediate reboot of connected equipment Diagnostic LEDs (indicate 17 performance conditions) UL (USA), cUL (Canada), NOM (Mexico), FCC Class A (Business) Listed $250,000 Ultimate Lifetime Insurance (USA & Canada Only)
• Output Voltage: 120 V AC Single-phase
• Weight (Approximate): 80 lb
