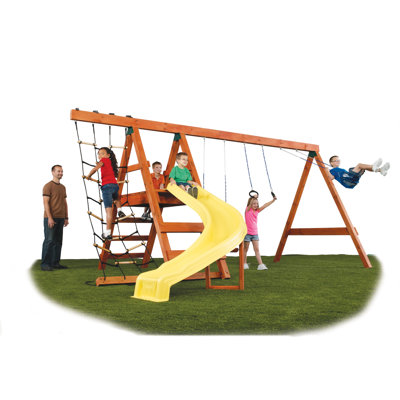

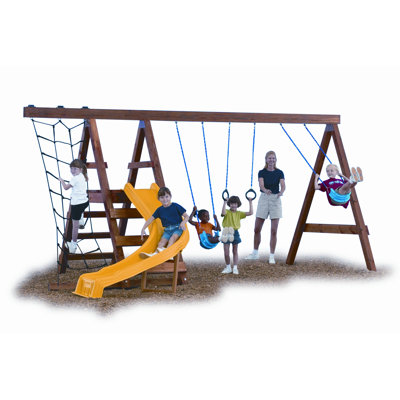

Swing-n-Slide Pioneer Custom DIY Play Set Hardware Kit - Project 555

This swing set evokes the pioneer spirit in your children and yourself with its ready to build kit. It includes assembly instructions, 2 belted swing seats, 1 pair of Iron Man Rings, 6 swing hangers, 6 EZ frame brackets and hardware kit. Optional Sidewinder Slide, Cargo Net, and safety handles are available at an additional cost. Lumber and swing set hardware are not included.

Features:

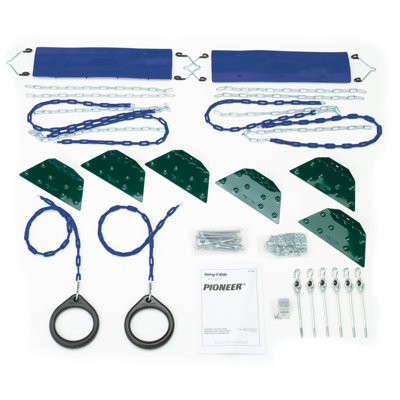

• Includes assembly instructions, 2 belted swing seats, 1 pair of Iron Man Rings, 6 swing hangers, 6 EZ frame brackets and hardware kit
• Lumber NOT included
• Slide mounts to 3'6"- 5'6" platform
• Slide requires 2" x 4" x 12' lumber for mounting
• Weight capacity for slide is 250 lbs
• Optional Climbing Cargo Net promotes coordination, balance, and strength with a weight limit of 150 lbs
• Optional safety handles promote safe play with a helping hand
• All optional items are available at an additional cost
• Other possible accessories include swing seat, steering wheel, extra duty swing seat and more
• Swing set holds an average of 8 children
• This kit meets or exceeds all ASTM (American Society of Testing Materials) requirements for safety
• Estimated building time: 6-8 hours
• Dimensions: 14' x 16' x 8'

Specifications:

• Deck: 53” x 28” x 48” high
• 10.3 sq ft
• 7 Play Activities
• Limited 5 year warranty

Lumber Specifications:

• Two 2" x 4" x 8'
• One 2" x 4" x 10'
• One 2" x 4" x 12'
• One 2" x 6" x 8'
• Two 2" x 6" x 10'
• Two 2" x 6" x 12'
• Seven 4" x 4" x 8'
• One 4" x 6" x 16' or two 2" x 6" x 16'

Nail and Screw Specifications:

• Must be ACQ compatible
• 3# 10D galvanized nails and 3# 8 x 2 1/2" screws
• 2# 16D galvanized nails and 2# 8 x 3" screws

**Please Note: Swing-N-Slide products are intended for residential use only, and will only be shipped to residential addresses.**
