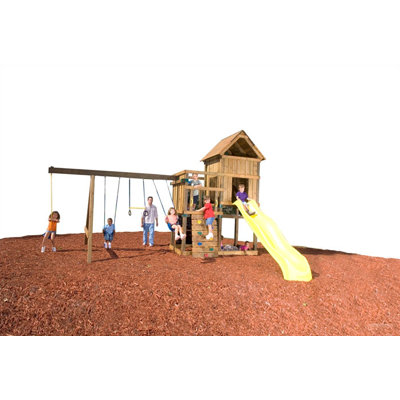

Swing-n-Slide Kodiak Custom DIY Play Set Hardware Kit - Project 513

A do it yourselfer's dream, this ready to build kit comes with what you need to get started on the ultimate swing set! This kit includes assembly directions, 24 time saving brackets, 4" x 4" construction. Optional Super Speedwave, Discovery Mountain, climbing rocks, ring/trapeze combo, Shooting Star Disc Swing, periscope, set of swing hangers, and Anchor It playground anchor set are available at an additional cost. Lumber and swing set hardware are not included.

Features:

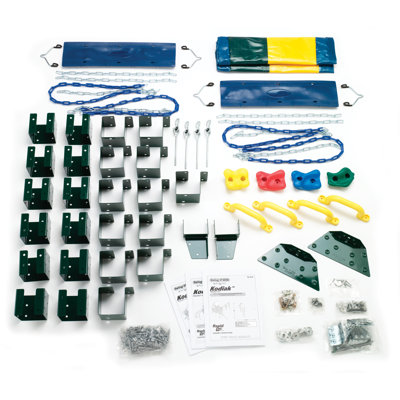

• Comes with assembly plan, 24 time saving brackets, 4" x 4" construction
• Lumber NOT included
• Optional Super Speedwave slide mounts to 5' - 5'6" platform and requires one 2" x 4" x 8' piece of lumber for mounting
• Slide can hold up to 270 lbs
• Optionl Discovery Mountain easily attaches to 4' to 5' deck heights holding up to 450 lbs
• Optional climbing rocks come with 4 climbing holds and a weight capacity of 230 lbs when completed
• Requires hardware and lumber
• Optional Shooting Star Disc swing builds core body strength and can hold up to 115 lbs
• Optional swing hanger attaches to metal or wooden swing beam holding up to 115 lbs
• Optional ring / trapeze combo holds up to 115 lbs
• Optional colorful plastic periscope adds to the fun
• Anchor It playground anchor set is recommended for all swing sets
• All optional items are available at an additional cost
• Other possible accessories are the Cool Wave Slide, Super Speed wave slide, Discovery Mountain and more
• Kit meets all ASTM (American Society of Testing Materials) requirements for safety
• 32 sq. ft. play deck with 4 & 5 foot deck heights
• 10 play activities
• Estimated building time: 5-10 hours
• Limited 5 year warranty

Lumber Specifications:

• Sixteen 2" x 4" x 8'
• One 2" x 4" x 10'
• Seventeen 5/4" x 6" x 10'
• Fourteen 5/4" x 6" x 12'
• Six 4" x 4" x 8'
• Four 4" x 4" x 10'
• One 4" x 4" x 12'
• One 4" x 6" x 12' or two 2" x 6" x 12'
• Rock Wall requires two 2" x 4" x 8', and two 5/4" x 6" x 12'
• Discovery Mountain requires three 2" x 4" x 8'
• Super Speed wave requires one 2" x 4" x 2'
• Optional Ladder requires one 2" x 4" x 8', and two 2" x 4" x 10'

Nail and Screw Specifications:

• Must be ACQ compatible
• 1# 4D galvanized nails, or 1# 8 x 1 1/4" screws
• 2# 8D galvanized nails, or 2# 8 x 2" screws
• 5# 10D galvanized nails, or 5# 8 x 2 1/2" screws

**Please Note: Swing-N-Slide products are intended for residential use only, and will only be shipped to residential addresses.**
