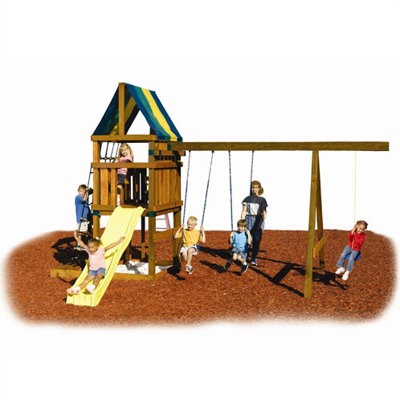

Swing-n-Slide Alpine Custom DIY Play Set Hardware Kit - Project 611

This ready to build swing set kit comes with the flexibility and accessories at a value cost. Great for do it yourself parents this kit comes with assembly plan, 31 brackets, 4" x 4" construction. Optional Cool Wave Slide, Cargo Net, Shooting Star Disc Swing, and Anchor It playground anchor set are available at an additional cost. Lumber and swing set hardware are not included.

Features:

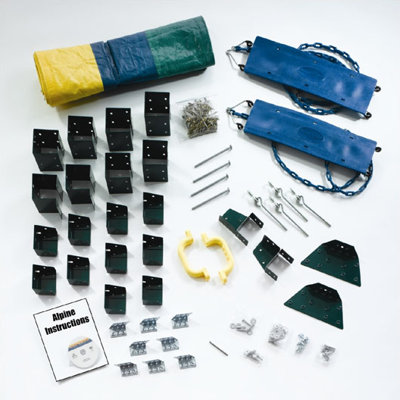

• Comes with assembly plan, 31 brackets, 4" x 4" construction
• Lumber NOT included
• Optional Cool Wave slide mounts to 3'6" - 4'4" deck heights and holds up to 250 lbs
• Optional Cargo Net promotes balance and strength holding up to 150 lbs
• Optional Shooting Star Disc swing helps children build core body strength holding up to 115 lbs
• Optional Anchor It playground set anchor is recommended for all swing sets and with mounting hardware
• All optional items are available at additional cost
• Other possible accessories include Snug Fit Swing seat, ring / trapeze combo, Lil Roadster Swing and more
• Kit meets all ASTM (American Society of Testing Materials) requirements for safety
• 16 sq. ft. play deck with 4' deck height
• 10 play activities
• Estimated building time: 5-9 hours
• Limited 5 year warranty

Lumber Specifications:

• Five 2" x 4" x 8'
• Three 2" x 4" x 10'
• Eight 5/4" x 6" x 10'
• Three 5/4" x 6" x 12"
• Eight 4" x 4" x 8'
• One 4" x 4" x 10'
• One 4" x 6" x 12' or two 2" x 6" x 12'
• Cargo Net requires two 5/4" x 6" x 10'
• Cool Wave Slide requires one 2" x 4" x 2'
• Ladder requires three 2" x 4" x 8'

Nail and Screw Specifications:

• Must be ACQ compatible
• 1# 4D galvanized nails, or 1# 8 x 1 1/4" screws
• 1# 8D galvanized nails, or 1# 8 x 2" screws
• 5# 10D galvanized nails, or 5# 8 x 2 1/2" screws

**Please Note: Swing-N-Slide products are intended for residential use only, and will only be shipped to residential addresses.**
