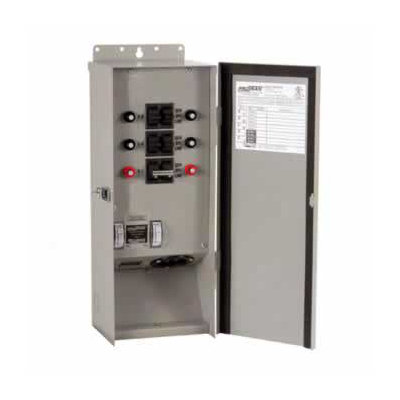

Reliance Controls Pro / Tran Outdoor Transfer Switch

Features:

  • Each cabinet includes six combination 0.5'' and 0.75'' knockouts, one on each side, two on the bottom and two on the back
  • Transfer switch
  • Ideal for outdoor installation in residential and commercial applications
  • Gasketed steel cabinet is powder-coated, with padlockable cover, and will accommodate the generator cord with the cover closed
  • Simply mount the cabinet, attach the conduit and feed the clearly-marked wires from the transfer switch into the load center
  • Simply select the load center circuits needed in an emergency and connect them to the wires leads from the transfer switch
  • Branch-circuit rated breakers, heavy-duty power inlet and non-defeat-able double-throw switches
  • UL listed
  • Accuracy of 3% throughout the entire range

Product Details:

  • Voltage: 250 Volts (V)
  • Frequency: 60 Hertz
  • Number of Phases: 2
  • Amperage: 20 Amps
  • Number of Circuits: 6
  • Maximum Wattage: 5000 Watts (W)
  • Generator Type: Portable generator
  • Outdoor Use: Yes
  • UL Listed: Yes
  • Product Warranty: 2 years

Dimensions:

  • Overall: 18.5" H x 7.5" W x 7" D
  • Overall Product Weight: 20lbs

Reliance Controls Pro / Tran Outdoor Transfer Switch

Weights & Dimensions

  • Overall: 18.5" H x 7.5" W x 7" D
  • Overall Product Weight: 20lbs

Features

Product Type: ManualFinish: Gray
Powder Coated Finish: YesMaterial: Metal
  • Material Details: Steel
Number of Items Included: 1Weather Resistant: Yes
  • Weather Resistant Details: NEMA 3R enclosure
Water Resistant: Yes
  • Water Resistant Details: NEMA 3R enclosure
Voltage: 250 Volts (V)
Frequency: 60 HertzNumber of Poles: 2
Number of Phases: 2Amperage: 20 Amps
Number of Circuits: 6Maximum Wattage: 5000 Watts (W)
Service Entrance Included: NoCover Included: Yes
    Load Center Included: NoPower Inlet Box Included: No
    Generator Wattage Meter: YesGenerator Type: Portable generator
    Outdoor Use: YesCommercial Use: Yes
    Country of Manufacture: United States

    Assembly

    Assembly Required: NoInstallation Required: Yes

    Warranty

    Product Warranty: 2 years

    Specifications

    ASTM Compliant: YescUL Listed: Yes
    ETL Certified: YesGeneral Conformity Certificate: Yes
    NEMA Certified: YesUL Listed: Yes
    UL 1008 Listed: Yes

    About the Manufacturer

    In 1969 Reliance introduced the compact and rugged Series 500 time switches. The Series 500 has been used on billboards, water heaters, lighting and any place electrical power needs to be controlled on a daily schedule. Today the Series 500 is the quality standard for the industry.

    In 1983, Reliance introduced the first manual transfer switches engineered specifically for use with portable generators of up to 5000W.

    In 1995, Reliance Controls Corporation introduced Panel/Link® manual transfer panels and generator-ready load centers for use with standby generating systems to 31.5kW.

    In 1999, Reliance Controls Corporation introduced the Easy/Tran® for use with traffic signals, cell towers, irrigation systems, community well pumps and more. The Easy/Tran is the original “point-of-use” transfer switch.

    In 2003, the original Reliance Gen/Tran(TM) line of manual transfer switches was replaced with the vastly improved Pro/Tran® Series which accommodates portable generators of up to 12,500W. The Pro/Tran® is also the first loadside transfer switch to be listed to the new, and more stringent, UL1008 standard.

    In 2005, Reliance Controls Corporation added the Pro/Tran® Q Series. The Q is a totally unique loadside transfer switch featuring conventional 1-inch interchangeable circuit breakers for easy upgrading and adjusting of branch circuit protection on the generator side of the transfer switch. It is ideal for heavier residential loads such as water heaters, deep well pumps, septic lift stations and central air conditioners. The Q Series is available with the exclusive Reliance electronic bar graph meter which monitors voltage and wattage on each generator leg.

    As the leader in portable standby power integration, Reliance Controls Corporation has contributed more innovations than any other single manufacturer and has been awarded over 30 patents on manual transfer switches and accessories. And after nearly a century of innovation, Reliance Controls Corporation has built an enviable reputation for high quality, superior engineering and exceptional customer service.

    Reliance Controls Pro / Tran Outdoor Transfer Switch

    Success! Your question has been submitted.

    You should receive a response within 8 business hours. Thanks for your patience!

    Ask A Question

    Ask a Question

      Cancel

      We're sorry, we have no FAQs to display.

      When you buy a Reliance Controls Pro / Tran Outdoor Transfer Switch online from Wayfair, we make it as easy as possible for you to find out when your product will be delivered. You can check on a delivery estimate for the Reliance Controls Part #: R20126B here. If you have any questions about your purchase or any other Generator Transfer Switches product for sale our customer service representatives are available to help.Whether you just want to buy a Reliance Controls Pro / Tran Outdoor Transfer Switch or shop for your entire home, Wayfair has a zillion things home.
      See something odd? Report it here.

      Customer Reviews

      Tell Us What You Think!

      Tell us what you think about the Pro / Tran Outdoor Transfer Switch. It will help us provide you with better products in the future and help your fellow Wayfair shoppers make better purchases.

      Write A Review
      Average Overall Rating
      (based on 1 reviews)
        5.0

      Clear All
      5 star
      1
      4 star
      0
      3 star
      0
      2 star
      0
      1 star
      0
      03/29/2012
        5.0

      well designed transfer switch

      from Annapolis, MD – Verified Buyer

      product includes a very useful feature allowing you to monitor power usage.
