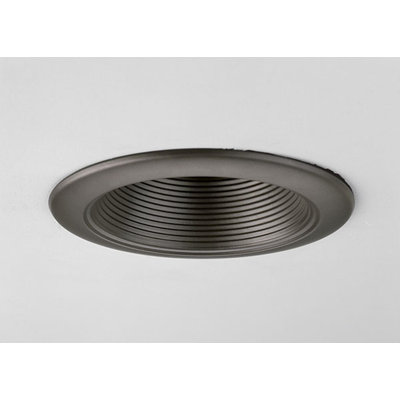

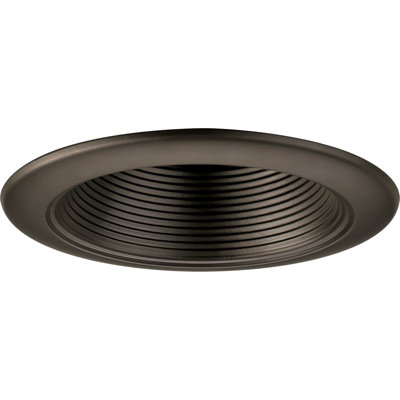

Progress Lighting 4" Incandescent Step Baffle Recessed Light Trim

Taking a cue from great rooms and kitchens, recessed lighting is finding its place in dining rooms and media centers as well, offering the most unobtrusive way to illuminate and accent a room or space. . The trim is for non-insulated ceilings and can tilt 20 degrees.

FEATURES:

• Unpainted flange
• Tilts 20 degrees
• Lamp: 55W Par 16, 50W Par 20, R20 (not included)
• For non-insulated ceilings
• Note: Recessed housing NOT INCLUDED
• Overall dimensions: 5" outside diameter

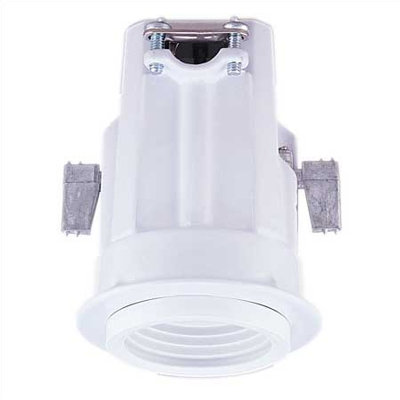

4" Incandescent Housing: New Construction Non-IC Features:

• Integral Romex clamp
• Notched plaster frame for easy alignment
• Trim mounted socket snaps into trim for consistent lamp positioning
• Ul and CUL Listed for damp locations and feed through wiring
• Rated for 8 12 90 degree conductors (4 in/4 out)
• Integral T-bar clamps
• Locking feature to secure housing
• Nail grip bar hangers accommodate up to 24" on center ceiling joists
• adjustable from 0.5" to 2.5" ceiling thickness
• 4.5" Ceiling Opening
• 7.875" x 10.75" Plaster Frame
• 5.5" Recessed Depth
• 0.5" and 0.75" Pryouts

4" New Construction Non-IC Line Voltage Firebox Features:

• Non-IC Rated
• UL and CUL listed for damp location and feed through wiring
• UL Classified to maintain fire ratings of 1 hour or less for UL D200, D500, G200, G500, L200 and L500 series floor/ceiling designs.
• Fits into 2" x 10" construction
• 4.5" Ceiling Opening
• 8.1875" Recessed Depth
• 8.375" x 13" Plaster Frame
• 0.5" and 0.75" Pryouts

4" Incandescent Housing: Remodel Non-IC Features:

• Retrofit version of P830TG for use in existing ceilings
• Integral flange on housing and exclusive locking bars permits quick mounting in ceilings from 0.5" to 1" thick
• Attached junction box with removable sides
• UL and CUL Listed for damp locations and through wiring
• 4.25" Ceiling Opening
• 5.5" Recessed Depth
• 0.5" Pryouts
