Home Improvement > Parts And Accessories > Part #: 14325
SKU #: OMT1204

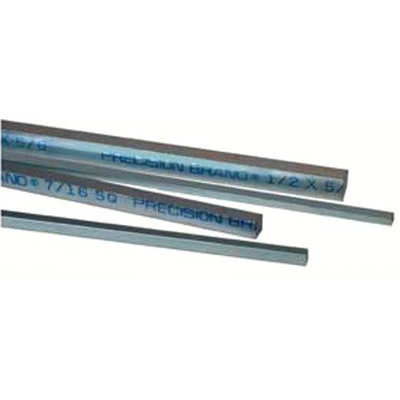

Precision Brand Square Zinc Plated Keystocks - 3/8" square keystockzinc plated

(

View all from Precision Brand

)

Write the first review
$30.40
(for set of 10 items)
List Price: $3.40 per item
You Save:

$0.36 (11%)
rewards ?
Earn $0.09

Free Shipping on orders over $49.00
Order in the next and have this item delivered Free by ! More
Delivery Estimates
Guaranteed Delivery By December 24th

Items with the 12/24 Guarantee will be delivered to addresses in the lower 48 states on or before December 24, 2012. This offer does not apply to Alaska, Hawaii, Puerto Rico or Canada.

Any purchase between now and 12/25 can be returned through 1/30.

Qty:
Registry
Wish List

Share:

Product Details
    This item features:
  • Used to provide driving torque between shafts and pulleys, gears, sprockets, etc.
  • Oversized to assure tight fits in keyways for positive, zero backlash power transmission
  • Sizes marked on each piece
  • Available in other square and rectangular sizes and plain finish
  • Coating: Galvanized Zinc
    Testing and approvals:
  • ASTM


Model Code  Model Description
AALength:12 in, Width:1 1/4 in, Tolerance (-):0.00200 in [Min], Tolerance (+):0.00400 in [Max], Material:Steel C1018, Quantity:2 per bundle, Wt.:10.63 lb
ABLength:12 in, Width:1 1/8 in, Tolerance (-):0.00200 in [Min], Tolerance (+):0.00400 in [Max], Material:Steel C1018, Quantity:2 per bundle, Wt.:8.61 lb
ACLength:12 in, Width:1 3/16 in, Tolerance (-):0.00200 in [Min], Tolerance (+):0.00400 in [Max], Material:Steel C1018, Quantity:2 per bundle, Wt.:9.59 lb
ADLength:12 in, Width:1 in, Tolerance (-):0.00200 in [Min], Tolerance (+):0.00400 in [Max], Material:Steel C1018, Quantity:4 per bundle, Wt.:13.60 lb
AELength:12 in, Width:1/2 in, Tolerance (-):0.00100 in [Min], Tolerance (+):0.00000 in [Min], 0.00300 in [Max], Material:Steel C1018, Quantity:4 per bundle, Wt.:3.40 lb
AFLength:12 in, Width:1/4 in, Tolerance (-):0.00100 in [Min], Tolerance (+):0.00000 in [Min], 0.00300 in [Max], Material:Steel C1018, Quantity:6 per bundle, Wt.:1.28 lb
AGLength:12 in, Width:11/16 in, Tolerance (-):0.00200 in [Min], Tolerance (+):0.00400 in [Max], Material:Steel C1018, Quantity:4 per bundle, Wt.:6.43 lb
AHLength:12 in, Width:3/16 in, Tolerance (-):0.00100 in [Min], Tolerance (+):0.00000 in [Min], 0.00300 in [Max], Material:Steel C1018, Quantity:6 per bundle, Wt.:0.72 lb
AILength:12 in, Width:3/32 in, Tolerance (-):0.00100 in [Min], Tolerance (+):0.00000 in [Min], 0.00300 in [Max], Material:Steel C1018, Quantity:10 per bundle, Wt.:0.29 lb
AJLength:12 in, Width:3/4 in, Tolerance (-):0.00100 in [Min], Tolerance (+):0.00300 in [Max], Material:Steel C1018, Quantity:4 per bundle, Wt.:7.65 lb
AKLength:12 in, Width:3/8 in, Tolerance (-):0.00100 in [Min], Tolerance (+):0.00000 in [Min], 0.00300 in [Max], Material:Steel C1018, Quantity:6 per bundle, Wt.:2.87 lb
ALLength:12 in, Width:5/16 in, Tolerance (-):0.00100 in [Min], Tolerance (+):0.00000 in [Min], 0.00300 in [Max], Material:Steel C1018, Quantity:6 per bundle, Wt.:2 lb
AMLength:12 in, Width:5/32 in, Tolerance (-):0.00100 in [Min], Tolerance (+):0.00000 in [Min], 0.00300 in [Max], Material:Steel 1215, Quantity:10 per bundle, Wt.:0.83 lb
ANLength:12 in, Width:5/8 in, Tolerance (-):0.00100 in [Min], Tolerance (+):0.00000 in [Min], 0.00300 in [Max], Material:Steel C1018, Quantity:4 per bundle, Wt.:5.31 lb
AOLength:12 in, Width:7/16 in, Tolerance (-):0.00100 in [Min], Tolerance (+):0.00000 in [Min], 0.00300 in [Max], Material:Steel C1018, Quantity:4 per bundle, Wt.:2.60 lb
APLength:12 in, Width:7/8 in, Tolerance (-):0.00200 in [Min], Tolerance (+):0.00400 in [Max], Material:Steel C1018, Quantity:4 per bundle, Wt.:10.41 lb
AQLength:12 in, Width:9/16 in, Tolerance (-):0.00100 in [Min], Tolerance (+):0.00000 in [Min], 0.00300 in [Max], Material:Steel C1018, Quantity:4 per bundle, Wt.:4.32 lb
ARLength:36 in, Width:1/2 in, Tolerance (-):0.00100 in [Min], Tolerance (+):0.00000 in [Min], 0.00300 in [Max], Material:Steel C1018, Quantity:10 per bundle, Wt.:25 1/2 lbNOTE: This product is subject to a minimum order quantity of 10
See something odd? Report it here.

Shipping Info

Free Shipping on orders over $49.00
Ships to:
Delivery Estimates
Ships via UPS/FedEx (Learn More)
Weight, Dimensions & Additional Features
Item: Dimensions: Weight:
Square Zinc Plated Keystocks - 3/8" square keystockzinc plated 1.25" W x 12 - 36" D 0.48 lbs
