Home Improvement > Tools & Equipment > Power Tools Accessories > Power Tool Consumables > Part #: 17670
SKU #: OMT1346

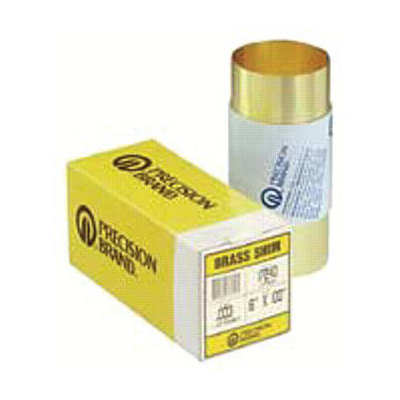

Precision Brand Brass Shim Stock Rolls - 17sx20 6"x60" .020 brassshim

(

View all from Precision Brand

)

Write the first review
$39.99
List Price: $49.00
You Save:

$9.01 (18%)
rewards ?
Earn $1.20

Free Shipping on orders over $49.00
Order in the next and have this item delivered Free by ! More
Delivery Estimates
Guaranteed Delivery By December 24th

Items with the 12/24 Guarantee will be delivered to addresses in the lower 48 states on or before December 24, 2012. This offer does not apply to Alaska, Hawaii, Puerto Rico or Canada.

Any purchase between now and 12/25 can be returned through 1/30.

Qty:
Registry
Wish List

Share:

Product Details
    This item features:
  • Half hard, cold rolled, CDA 260 alloy
  • Other dimensions and sizes available
  • Material: Brass
  • Hardness: 56.0 Rb [Min], 68.0 Rb [Max]
  • Tensile Strength: 57000 psi [Min], 67000 psi [Max]
  • Type: Shim-Plain
  • Packing Type: Roll
  • Price is for 1 Role
    Testing and approvals:
  • ASTM
  • SAE
  • CDA


Model Code  Model Description
AAWidth:12 in, Length:120 in, Thickness:0.0050 in, Thickness Tolerance (-):0.00080 in [Min], Thickness Tolerance (+):0.00080 in [Max], Wt.:2.46 lb
ABWidth:12 in, Length:120 in, Thickness:0.0080 in, Thickness Tolerance (-):0.00100 in [Min], Thickness Tolerance (+):0.00100 in [Max], Wt.:3.93 lb
ACWidth:12 in, Length:120 in, Thickness:0.0120 in, Thickness Tolerance (-):0.00150 in [Min], Thickness Tolerance (+):0.00150 in [Max], Wt.:5.80 lb
ADWidth:6 in, Length:100 in, Thickness:0.0010 in, Thickness Tolerance (-):10.00000% [Min], Thickness Tolerance (+):10.00000% [Max], Wt.:0.29 lb
AEWidth:6 in, Length:100 in, Thickness:0.0015 in, Thickness Tolerance (-):0.00100 in [Min], Thickness Tolerance (+):0.00100 in [Max], Wt.:0.38 lb
AFWidth:6 in, Length:100 in, Thickness:0.0020 in, Thickness Tolerance (-):10.00000% [Min], Thickness Tolerance (+):10.00000% [Max], Wt.:0.46 lb
AGWidth:6 in, Length:100 in, Thickness:0.0030 in, Thickness Tolerance (-):10.00000% [Min], Thickness Tolerance (+):10.00000% [Max], Wt.:0.64 lb
AHWidth:6 in, Length:100 in, Thickness:0.0040 in, Thickness Tolerance (-):0.00030 in [Min], Thickness Tolerance (+):0.00030 in [Max], Wt.:0.82 lb
AIWidth:6 in, Length:100 in, Thickness:0.0050 in, Thickness Tolerance (-):0.00040 in [Min], Thickness Tolerance (+):0.00040 in [Max], Wt.:1.03 lb
AJWidth:6 in, Length:100 in, Thickness:0.0060 in, Thickness Tolerance (-):0.00040 in [Min], Thickness Tolerance (+):0.00040 in [Max], Wt.:1.21 lb
AKWidth:6 in, Length:100 in, Thickness:0.0070 in, Thickness Tolerance (-):0.00060 in [Min], Thickness Tolerance (+):0.00060 in [Max], Wt.:1.45 lb
ALWidth:6 in, Length:100 in, Thickness:0.0080 in, Thickness Tolerance (-):0.00060 in [Min], Thickness Tolerance (+):0.00060 in [Max], Wt.:1.57 lb
AMWidth:6 in, Length:100 in, Thickness:0.0090 in, Thickness Tolerance (-):0.00060 in [Min], Thickness Tolerance (+):0.00060 in [Max], Wt.:1.78 lb
ANWidth:6 in, Length:100 in, Thickness:0.0100 in, Thickness Tolerance (-):0.00080 in [Min], Thickness Tolerance (+):0.00080 in [Max], Wt.:1.96 lb
AOWidth:6 in, Length:100 in, Thickness:0.0120 in, Thickness Tolerance (-):0.00100 in [Min], Thickness Tolerance (+):0.00100 in [Max], Wt.:2.44 lb
APWidth:6 in, Length:100 in, Thickness:0.0150 in, Thickness Tolerance (-):0.00100 in [Min], Thickness Tolerance (+):0.00100 in [Max], Wt.:3.08 lb
AQWidth:6 in, Length:100 in, Thickness:0.0200 in, Thickness Tolerance (-):0.00130 in [Min], Thickness Tolerance (+):0.00130 in [Max], Wt.:3.67 lb
ARWidth:6 in, Length:100 in, Thickness:0.0250 in, Thickness Tolerance (-):0.00200 in [Min], Thickness Tolerance (+):0.00200 in [Max], Wt.:5.08 lb
ASWidth:6 in, Length:100 in, Thickness:0.0310 in, Thickness Tolerance (-):0.00200 in [Min], Thickness Tolerance (+):0.00200 in [Max], Wt.:6.13 lb
ATWidth:6 in, Length:180 in, Thickness:0.0100 in, Thickness Tolerance (-):0.000Unit Sold is in measure of 1 Roll
See something odd? Report it here.

Shipping Info

Free Shipping on orders over $49.00
Ships to:
Delivery Estimates
Ships via UPS/FedEx (Learn More)
Weight, Dimensions & Additional Features
Item: Dimensions: Weight:
Brass Shim Stock Rolls - 17sx20 6"x60" .020 brassshim 6 - 12" W x 60 - 180" D 3.21 lbs

Additional Features
Product Category:Power Tool Consumables
Type:Flathead
back to top

Questions & Answers
Have a question? We want to know

We're sorry, we have no FAQs to display.
back to top

Reviews

See Similar Products
▪ View more products from: Precision Brand
▪ View more: Power Tool Consumables

Advertisement
Reference
OUR SKU # OMT1346 This item is also sometimes listed under the following manufacturer numbers: 605-17670
