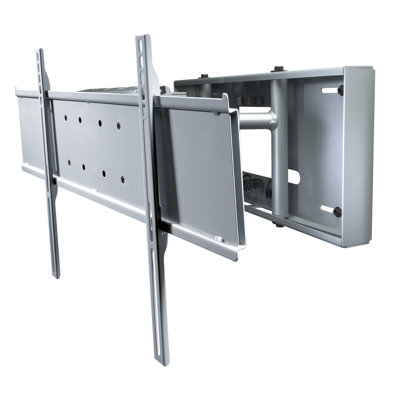

The SP850 Pull-out Swivel mount is designed to work with most 32" to 58" Plasma or LCD flat panel displays. Compatible with VESA® 100 and 200 hole patterns through the integrated adapter plate, the 2" ultra-thin design keeps the screen close to the wall and the mount out of view. With a boxed in wall plate that eliminates the view of the mount hardware from a side view, the SP850 is the perfect installation product for residential, public and digital signage, POS stations and office applications. The inclusion of the PLP-UNL universal adapter plate makes the mount a versatile product.
Need professional installation?
- Fits most screen sizes 32" to 58"
- Easy pull-out swivel provides quick maintenance access
- Universal UNL adapter plate included
- Ideal for wall mount applications and attachment to false backsplashes
- 0, 5, or 10 degrees lockable incremental tilt
- +/- 1 degree roll for horizontal screen alignment during installation
- 2" deep when closed, swivel arms extend to 10.5"
- When extended, screen can swivel up to 45° left and right depending on screen size
- Mounts on 16" studs
- Clean profile design hides wiring and mount within enclosed wall plate
- Includes security lock out screw to eliminate pull out ability
- Adjustable mounting pattern: 17.05" H x 28.75" W
- Distance from wall: 3.4" - 11.9"
- Weight capacity: 150 lbs
Use the Flat Panel Mount Installation Card (for up to 30” screens) or the Large Flat Panel Mount Installation Card (for over 30” screens)! Give us a call with any questions!
Ships via FedEx/UPS
back to top
|Universal Pull-Out Swivel Wall Mount for 32 - 58" Screens
|Fits TV Brand Options:||LG, Panasonic, Samsung, Sharp, Sony, Vizio|
|Intended TV Type Options:||Plasma, Plasma / LCD Flat Panel|
|Mount Type:||Wall Mount|
|Other:||Made in The USA|
|Product Category:||TV Mounts|
|Weight Capacity:||150 lbs.|
