Peerless Desktop Articulating Arm for 10"-22" LCD Screens

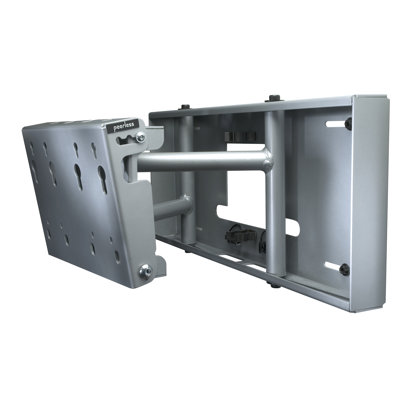

The SP850 Pull-out Swivel mount is designed to work with most 26" to 50" Plasma or LCD flat panel displays. Compatible with VESA® 100 and 200 hole patterns through the integrated adapter plate, the 2" ultra-thin design keeps the screen close to the wall and the mount out of view.

With a boxed in wall plate that eliminates the view of the mount hardware from a side view, the SP850 is the perfect installation product for residential, public and digital signage, POS stations and office applications. Additional compatibility with Peerless’ PLP or LC adapter plates makes the mount a versatile product.

Features:

• Fits most screen sizes 26" to 50" (150 lbs max)
• Easy pull-out swivel provides quick maintenance access
• Built in adapter plate supports VESA 100 and 200 compatibility
• Non-Vesa screens require PLP adapter plate (see related products)
• Ideal for wall mount applications and attachment to false backsplashes
• 0, 5, or 10 degrees lockable incremental tilt
• +/- 1 degree roll for horizontal screen alignment during installation

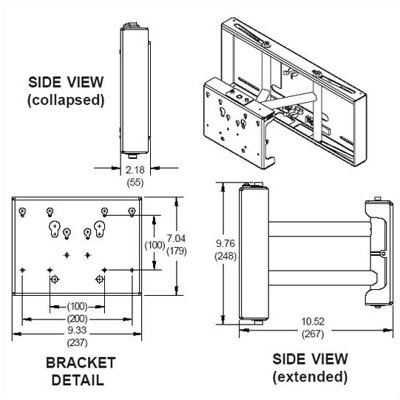

• 2.25" deep when closed, swivel arms extend to 10.5"
• When extended, screen can swivel up to 45° left and right depending on screen size
• Mounts on 16" studs
• Clean profile design hides wiring and mount within enclosed wall plate
• Includes security screws for attachment at the screen(SP 850 and SP 850-S only)
• Includes security lock out screw to eliminate pull out ability
• Security screws require special wrench for removal (included); phillips-head screws can be removed with any standard screwdriver

Need professional installation? Use the Flat Panel Mount Installation Card (for up to 30” screens) or the Large Flat Panel Mount Installation Card (for over 30” screens)! Give us a call with any questions!
