Part #: 243CP
SKU #: MOE2983

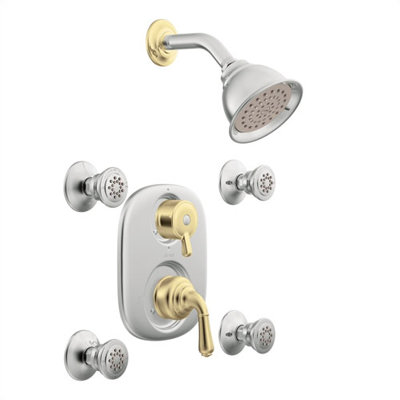

Moen Monticello Three Function Transfer Valve Trim Vertical Spa Set - 243CP

(

View all from Moen

)

Write the first review
$347.99 (Varies with options)
List Price: $504.60
You Save:

$156.61 (31%)
rewards ?
Earn $10.44

Free Shipping!
Order in the next and have this item delivered Free by ! More
Delivery Estimates
Like what you see? Configure this item below.Or click here to view more product info.
Guaranteed Delivery By December 24th

Items with the 12/24 Guarantee will be delivered to addresses in the lower 48 states on or before December 24, 2012. This offer does not apply to Alaska, Hawaii, Puerto Rico or Canada.

Any purchase between now and 12/25 can be returned through 1/30.

Share:

Choose From:
Monticello Three Function Transfer Shower Faucet Trim Vertical Spa Set
Monticello Three Function Transfer Shower Faucet Trim Vertical Spa Set
stock status unknown
1 Included
Include Additional Items:

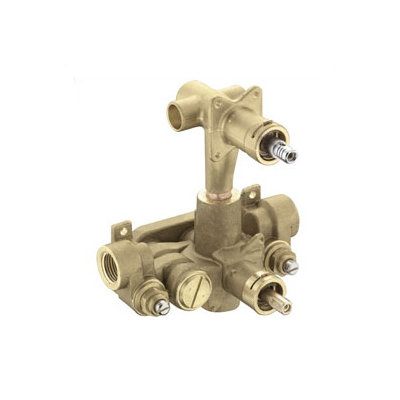

Moentrol Three Function Built In Transfer Valve
Moen Moentrol Three Function Built In Transfer Valve
stock status unknown
+$157.99
Make it Yours:
Total Price:
$0.00
(0 item(s))

Registry
Wish List

Product Details
The Moen ultimate shower spa set features a pressure balancing mechanism that maintains selected discharge temperature and volume control. Available in a variety of finishes, this system turns any ordinary bathroom into a stylish escape from the everyday.

Features:
  • Three Function Transfer Valve Vertical Spa Set
  • M-PACT system
  • Valve available in Chrome
  • Pull-on/push-off operation of temperature and volume, rotational control of transfer valve
  • Temperature operates through an 180° arc of handle travel (full cold to full hot)
  • Adjustable temperature limit stop to control maximum hot water temperature
  • 180° rotation of transfer valve handle with stops
  • Showerheads 2.5 gpm (9.5 L/min) max
  • Pressure balancing mechanism maintains selected discharge temperature
  • Third party certified by CSA to meet CSA B-125, ASME A112.18.1M
  • Pressure balancing valve design with integral check stops, .5" CC connections, built in 3-function transfer valve
  • Pull-on/push-off operation of temperature and volume
  • Rotational control of transfer valve
  • Temperature operates through an 180 degree arc of travel handle from full cold to full hot
  • Adjustable temperature limit stop to control maximum hot water temperature
  • 180 degree rotation of transfer valve handle with stops
  • Pressure balancing mechanism maintains selected discharge temperature to within 2 degrees
  • 1225 cartridge design for Moentrol valve
  • 1200 cartridge design for transfer valve
  • Third party certified by CSA to meet CSA B-125, ASME A112.18.1M
  • Transfer valve has lifetime limited warranty against leaks, drips, and finish defects to the original consumer purchaser
  • 5 year warranty if transfer valve is used in commercial installations
See something odd? Report it here.

Shipping Info

Free Shipping!
Ships to:
Delivery Estimates
Ships via FedEx/UPS (Learn More)
Additional Documents
PDF
Technical Data

Weight, Dimensions & Additional Features
Item: Dimensions: Weight:
Monticello Three Function Transfer Shower Faucet Trim Vertical Spa SetUnavailable10.5 lbs
Moentrol Three Function Built In Transfer ValveUnavailable4.49 lbs

Additional Features
Mount:Wall Mount
Product Category:Valves
Safety Stop:Yes
Type:Pressure Balance Valves
Valve Application:Kitchen Faucet Valves
back to top

Questions & Answers
Have a question? We want to know

We're sorry, we have no FAQs to display.
back to top

Reviews

See Similar Products
▪ View more products from: Moen
▪ View the full collection: Moen Monticello Collection
▪ View more: Valves
Related Products
Moen Commercial Three Function Tub and Shower System
Tub and shower system. Commercial collection. Finish: Chrome. ...
Quickview
Hansgrohe Rough-In Valve for Vertical Bidet
Add the perfect component to your bathroom from ...
Quickview
Moen Kingsley Moentrol Built In Three Function Transfer
Metal construction with chrome plated, chrome with polished ...
Quickview

Advertisement
Reference
OUR SKU # MOE2983 This item is also sometimes listed under the following manufacturer numbers: 243, 243CP, 243P, 243PM, 243PMC, 3300, 3330, M243, M243CP, M243PM, M243PMC
