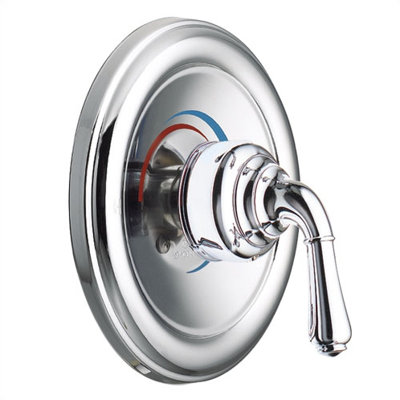

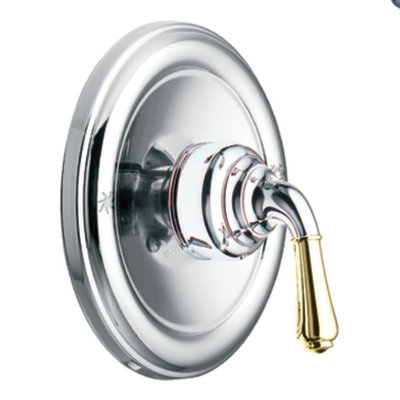

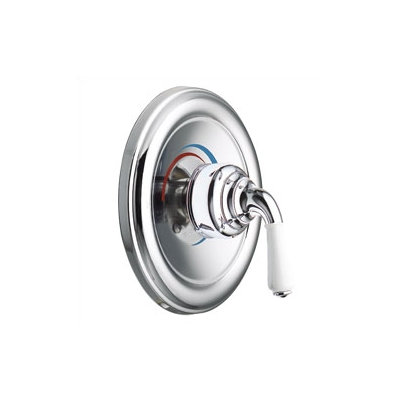

Moen Monticello Moentrol Single Handle Tub and Shower Trim

Complete your bathroom with this trim kit for Monticello Moentrol tubs and showers. The lever style handle looks elegant and stylish in the bathroom environment and features an adjustable temperature limit to avoid burns. The sturdy Moentrol pressure valve is beautifully crafted out of brass and features a pressure balancing, four port cycle valve along with volume control and integral check stops. Both the trim kit and the valve come with a lifetime limited warranty and a 5 year full warranty if used in commercial installations.

Features:

• Trim available in Chrome, Chrome with Porcelain, Platinum, Chrome with Polished Brass, Polished Brass, or Satine finish
• Pressure balancing valve design with integral check stops
• .5" CC connections
• Lever style handle with temperature indicator on the escutcheon, pull-on/push-off operation
• Temperature operates through an 180 degree arc of handle travel from full cold to full hot
• Adjustable temperature limit stop to control maximum hot water temperature
• Pressure balancing mechanism maintains selected discharge temperature to within 2 degrees
• 1225 cartridge design
• Cartridge built from nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
• Third party certified by CSA to meet CSA B-125, ASME A112.18.1M and all applicable requirements referenced therein and complies with the applicable requirements of ANSI A117.1
• Brass valve construction
• .5" CC connections
• Pressure balancing, four port valve design with volume control and integral check stops
• Adjustable temperature limit stop to control maximum hot water temperature
• Pressure balancing mechanism maintain selected discharge temperature to within 2 degrees
• 1225 cartridge design
• Cartridge built from nonmetallic/nonferrous and stainless steel materials
• Accommodates back to back installations
• Third party certified by CSA to meet CSA B-125, ASME A112.18.1M and all applicable requirements referenced therein
• Trim and valve have a lifetime limited warranty against leaks, drips, and finish defects to the original consumer purchaser
• In commercial installations, the trim and valve have a 5 year warranty
