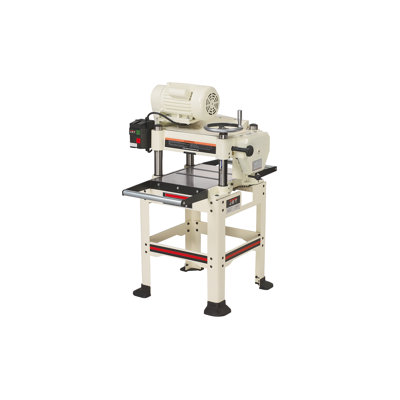

The JWP-16OS planer quickly and quietly transforms rough lumber into smooth boards, with a full 16? planing width. Its heavy-duty cast iron and steel construction keeps the workpiece steady and supported, while the conveniently located two-speed gear box allows for quick and easy feed rate adjustments. This machine means business with a powerful 3 HP induction motor. A large cast-iron table with smooth-as-glass surface makes this planer a beautiful addition to the shop. And since planers kick up a lot of dust, we made dust collection easy with an exclusive angled 4" dust port to keep your hose out of the way.
- Cutter head with three high speed steel knives locks firmly in place to prevent movement while in use
- Heavy duty cast iron and steel construction for added strength and durability
- Two speed gear box with automatic chain tensioner lets you adjust the feed rate to meet your needs
- Large, cast iron, precision ground table for precise work piece support
- Powerful 3 HP TEFC induction motor with three V belt transmission for smooth and consistent power
- Surge in feed and out feed rollers give your work piece maximum support during planning operations
- Large hand wheel with positive gear drive allows for quick and accurately table adjustments
- Exclusive angled 4"" dust port keeps your dust hose out of the way
- Heavy duty steel wide base open stand with casting pads provides support and stability of the tool during use
- Magnetic controls provide long life and reliability
- Maximum planning: 16""
- Cutter head speed: 4500 RPM
- Cuts Per Minute: 13500
- Feed Rate: 16 and 20 FPM
- number of Knives: 3
- Dust Port diameter: 4""
- Dust collection minimum cfm required: 400 cu.ft/min
- Blade size: 16.13"" x 1"" x.13""
- Dimensions: 30"" H x 22"" W x 32"" D
Ships via Truck Freight Delivery
