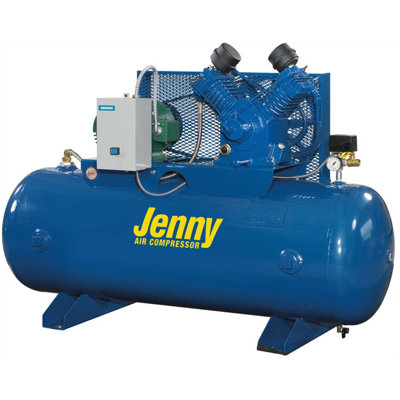

Jenny Products 60 Gallon 5 HP Two Stage Electric Stationary Air Compressor

This Electric Stationary Air Compressor is proudly made in Somerset, PA USA. It features a powder coated ASME certified tank, thermal overload motor protection and industrial/commercial grade UL listed electric motor with auto start/stop control with pressure unloader set at 145-175 PSI. This 60 Gallon 5 HP Stationary Air Compressors come equipped with mounted and wired magnetic starter, pressure relief safety valves, a tank gauge and is belt driven with a large flywheel for extra cooling and easier start-up. This Jenny Two Stage Electric Stationary Air Compressor comes splash lubricated with a limited 2-year warranty and is filled with Jenny Synthetic Blue Compressor Pump Oil.

Features:

• Heavy-duty two stage cast iron compressor pump made in Somerset, PA USA
• Splash lubricated
• Magnetic Starter mounted and wired
• Auto start/stop Control with pressure unloader set at 145-175 PSI
• Industrial/Commercial grade UL listed electric motor
• Oil Sight Glass
• Thermal overload motor protection
• Belt driven with a large flywheel for extra cooling and easier start-up
• Unit comes filled with Jenny Synthetic Blue Compressor Pump Oil
• Directional air shroud for reduced pump temperatures
• Totally enclosed heavy-duty belt guard
• Tanks are ASME National Board certified
• Protectively mounted fittings
• Manual tank drain
• Large canister intake filter with replaceable filter elements
• Tanks are powder coated and ASME certified
• Special unloading valves to assist in motor starting
• Tank gauge
• Pressure release safety valve

Options

• Voltage

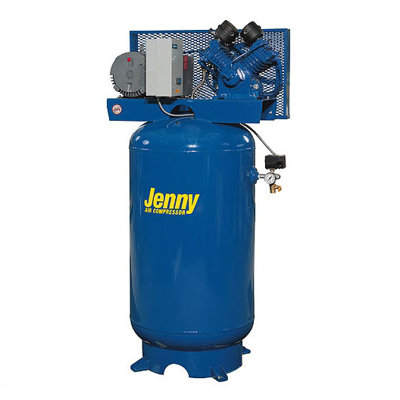

• Vertical Tank
• Mass Code - Fittings
• Mass Code - Platform
• Low Oil Level Switch - magnetic starter required
• Auto Tank Drain - air operated

Specifications:

• Engine: Electric
• Pump: GT
• Horse Power: 5 HP
• Tank Size: 60 Gallon
• Power Supply:
• 1 Phase: 230 Volt
• 3 Phase: 208, 230, 460 or 575 Volt
• CFM @ 175 PSI: 18.3 CFM
• Pump RPM: 900
• Del'd Air: 17.5
• Weight:
• 60 Gallon: 400 lbs
• Dimensions:
• Horizontal/Standard 40" H x 23" W x 49" D
• Vertical/Optional 70" H x 21" W x 28" D

2 year Limited Warranty:

• All compressors manufactured by Jenny are warranted to be free from defects in material and workmanship under normal use for a period of 2 years from the date or purchase by the original purchaser (initial user)
• Liability is limited to repair or replacement of material found defective, free of charge F.O.B. plant. Motors and engines are warranted to the extent of original manufacturer’s service facilities. Unauthorized repairs or replacements will not be subject to factory warranty
