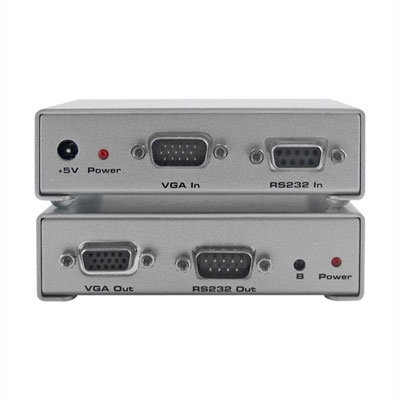

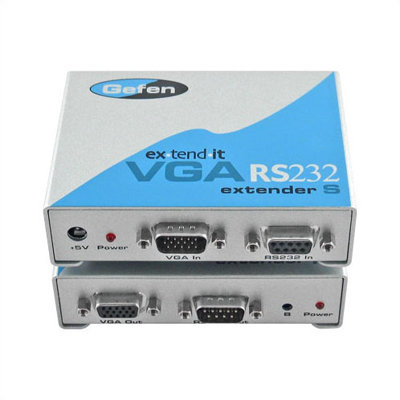

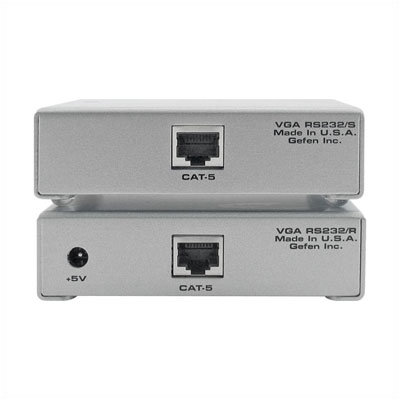

Gefen VGA RS-232 Extender

Extends any VGA or component HD display plus RS-232 up to 330 ft away with the help of the VGA RS-232 Extender by Gefen. This unit connects to your source using the supplied VGA and RS-232 cables. The receiver unit connects to your display and your serial device - up to 330 feet away. Finally, connect the sender and the receiver to each other using a single CAT5 cable, and you're good to go.

Features:

• Extends any VGA or high definition component display and RS-232 device up to 330 feet
• Trim pot and dip switches for fine video equalization
• Perfect for digital signage applications
• Supports resolutions up to 1080p, 2K and 1920 x 1200
• Includes VGA RS-232 Extender S, VGA RS232 Extender R, 6 ft VGA cable, 6 ft Serial cable and 2 5V external power supplies

Specifications:

• Video amplifier bandwidth: 350 MHz
• Input video signal: 1.2 Volts
• Horizontal frequency range: 15 - 70 KHz
• Vertical frequency range: 30 - 170 Hz
• Video in: HD-15 male
• Video out: HD-15 female
• RS232 input connector: DB-9 female
• RS232 output connector: DB-9 male
• Link connector: RJ-45 shielded
• Conforms to RS-232C standards
• Power supply: 5V DC
• Power consumption: 5 Watts (max)
• Dimensions: 1.13" H x 4" W x 3" D
