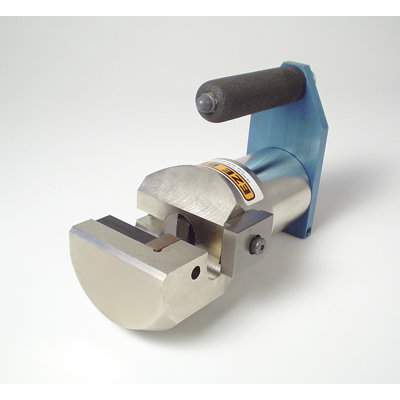

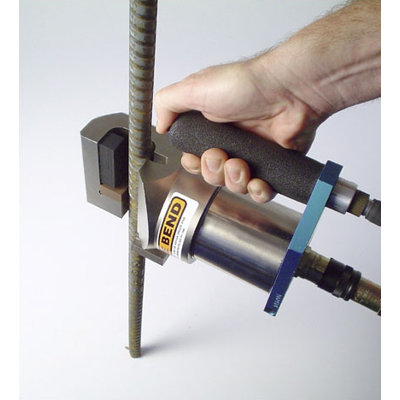

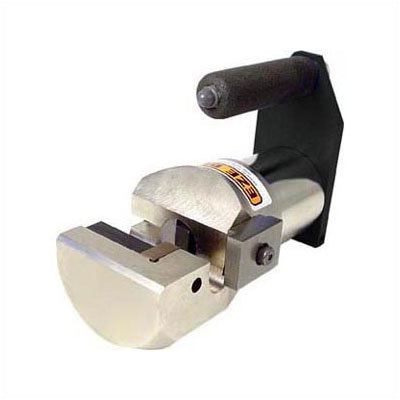

EZE Bend #6 Rebar Cutter with Hose and Pump Options

This #6 Rebar Cutter offers outstanding features, including 360-degree handle rotation, 4-sided Cutting Blocks, hand-operated Gauge Blocks, Shock Absorbers, and the lightest weight and smallest size in each of their classifications.

Features:

• 360-degree rotation
• 4 sided cutting blocks
• Hand operated gauge blocks
• Shock absorbers
• Hold with one hand
• Momentary power button
• Hydraulic quick connector
• Electrical connectors
• Perfect for cast in place rebar
• Saves on material and labor associated with corner lap-slices
• Provides greater safety by reducing worker fatigue
• Small size and light weight

Specifications:

• Capacity: #6 (3/4") 60-Grade Rebar
• Speed: Bends to 90-degrees in approximately 6 seconds
• Weight:22 lbs

Warranty:

• 1 Year

#6_One_Handed_Rebar_Cutter-Operators_Manual

#6 Hydraulic Pump
The .5 horsepower pump is standard for use with the #6 Power Heads. This #6 Hydraulic Pump is designed to ‘dump’ the hydraulic fluid immediately back into the tank. They do not ‘hold’. They also employ universal motor designs. As such, they draw low amperage and operate sufficiently from most generators. Use only EZE BEND or Enerpac Hydraulic Oil. DO NOT install other oil products as they may cause system failure and void the warranty. Keep oil level full. Replace oil every 3 - 6 months.

Features and Specifications:

• Horsepower: .5 Hp
• Amps: 9.25
• Standard for use with #6 Power Heads
• Weight: 27 lbs

Warranty:

• 1 Year

Hydraulic Hoses
EZE BEND encases the hydraulic hose and the electrical wire inside of a durable protection sleeve. The electrical and hydraulic connectors are identical on both ends and therefore, completely interchangeable. Always connect the hydraulic connection first, then the electrical. However, disconnect the electrical connection first, then the hydraulic. This order is easier to perform and eliminates unnecessary stress on the electrical components.

Features and Specifications for 10 ft Hose:

• Reversible connectors
• For usage where production work is necessary
• Weight: 7 lbs
• Length: 10 ft

Warranty:

• 1 Year

Features and Specifications for 25 ft Hose :

• Reversible connectors
• For usage where extended reach is necessary
• Weight: 10 lbs
• Length: 25 ft

Warranty:

• 1 Year
