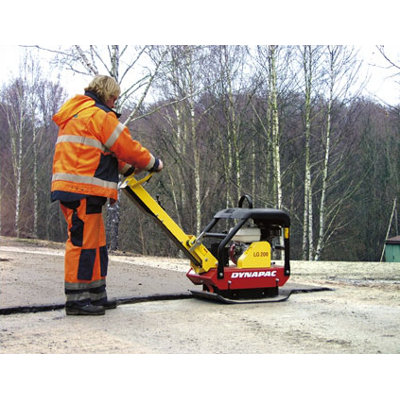

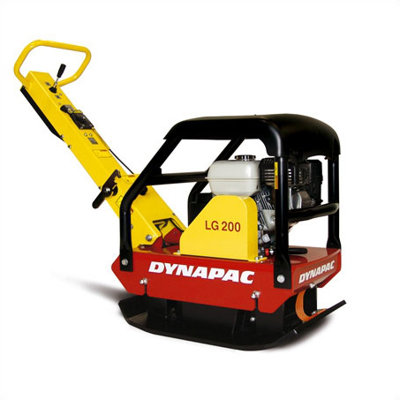

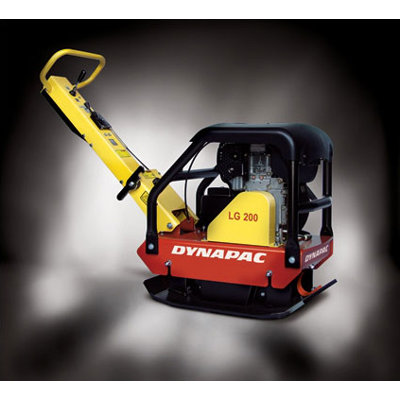

The LG200 is a compact forward/reverse vibratory plate with excellent compaction data. Speed and compaction depth are regulated steplessly via hydraulic servo control of the eccentric element. This gives the plate smooth motion and makes it very easy to operate. All-round plates for compaction work close to piles and concrete bases. Also for floor filling and foundations as well as backfill in pipe trenches. LG200 is an ideal plate for compacting sand and gravel in cable and pipe trenches, foundation work, road repairs, etc.
- For soil applications
- Forward and reversible plate compactor
- Hardox 400 bottom plate
- Vibration damped handle
- Servo hydraulic Forward/Reverse controller
- Engine: Honda GX200
- Horsepower: 6.5
- Fuel Type: Gas
- Plate Size: 20" x 28"
- Amplitude: 0.08"
- Frequency: 3,900 VPM
- Centrifugal Force: 8,100 lbs
- Weight: 474 lbs
- 1 Year Limited Warranty
Ships via Truck Freight Delivery
back to top
|20" x 28" Forward & Reversible Soil Plate Compactor w/ Honda GX200 6.5 HP Gas Powered Engine
||42" H x 20" W x 52" D
|Application:||Soil Compaction Only|
|Direction Options:||Reversible Direction, Single Direction|
