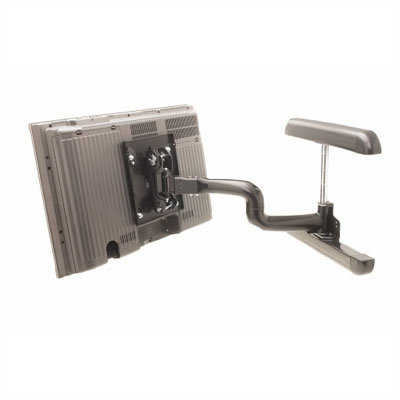

It's never been easier to install your LCD screen than with the Fusion Series by Chief. This line of custom mounting solutions combines functionality with low-profile designs. With a variety of fixed and tilt options for multiple screen sizes, you will find a mount that fits your needs! The Fusion Series Mounts include all standard mount features plus several new, industry leading exclusive features.
- Articulating arm allows for up to 90° of swivel (depending on size of screen)
- Ultra low-profile design fits tight against wall
- Q-Latch mounting system provides quick connect/disconnect of screen
- Portrait or landscape mounting capability
- Rapid level system provides hands-free leveling of mount
- Integrated lateral shift for a flexible installation
- Heavy gauge solid steel construction for ultimate strength
- Mounts on two studs
- VESA: MWR-V ships with universal VESA interface (100mm x 100mm, 100mm x 200mm, 200mm x 200mm)
- Universal: MWR-U ships with universal (large) interface to accommodate a broader range of screens
Chief warrants its products (excluding electric, gas cylinder, and one-way bearing mechanisms) to be free of defects in material and workmanship for 10 years.
- Extension from wall: 24 7/8"
- Depth from wall: 3 1/4" + interface bracket
- Tilt adjustment: 0 - 15 degrees
- Lateral shift: 4 1/2" left/right
- Weight capacity: 125 lbs
- Dimensions: 18" H x 23 5/8" W x 3 1/4" D
PLEASE NOTE: This item cannot be shipped to Puerto Rico

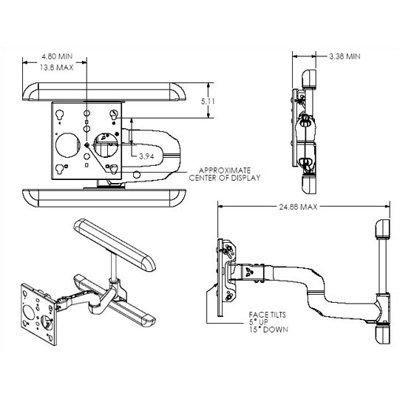

MWR Articulating LCD Wall Mount Technical Data
Ships via FedEx/UPS
back to top
|Universal MWR Double Stud LCD Wall Mount
||18" H x 23.625" W x 3.25" D
|Fits TV Brand Options:||LG, Panasonic, Samsung, Sharp, Sony, Vizio|
|Intended TV Type:||Plasma / LCD Flat Panel|
|Mount Type:||Wall Mount|
|Mounting Pattern Options:||200MM x 100MM, 200MM x 200MM, 75MM / 100MM, Universal|
|Other:||Same Day Shipping|
|Product Category:||TV Mounts|
|Weight Capacity:||125 lbs.|
