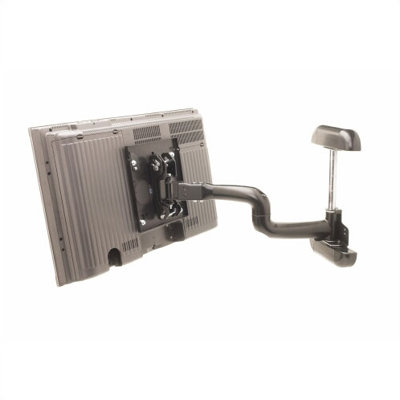

Chief Universal MWH Single Stud LCD Wall Mount

It's never been easier to install your LCD screen than with the Fusion Series by Chief. This line of custom mounting solutions combines functionality with low-profile designs. With a variety of fixed and tilt options for multiple screen sizes, you will find a mount that fits your needs! The Fusion Series Mounts include all standard mount features plus several new, industry leading exclusive features.

Features:

• Articulating arm allows for up to 90° of swivel (depending on size of screen)
• Ultra low-profile design fits tight against wall
• Q-Latch mounting system provides quick connect/disconnect of screen
• Portrait or landscape mounting capability
• Rapid level system provides hands-free leveling of mount
• Integrated lateral shift for a flexible installation
• Heavy gauge solid steel construction for ultimate strength
• Mounts on a single stud
• MWH-V ships with universal VESA interface (100mm x 100mm, 100mm x 200mm, 200mm x 200mm)
• MWH-U ships with universal (large) interface to accommodate a broader range of screens

Specifications:

• Extension from wall: 24 7/8"
• Depth from wall: 3 1/4" + interface bracket
• Tilt adjustment: 0 - 15 degrees
• Lateral shift: 1 1/2" left/right
• Weight capacity: 100 lbs
• Dimensions: 18" H x 23 5/8" W x 3 1/4" D

Chief warrants its products (excluding electric, gas cylinder, and one-way bearing mechanisms) to be free of defects in material and workmanship for 10 years.

PLEASE NOTE: This item cannot be shipped to Puerto Rico

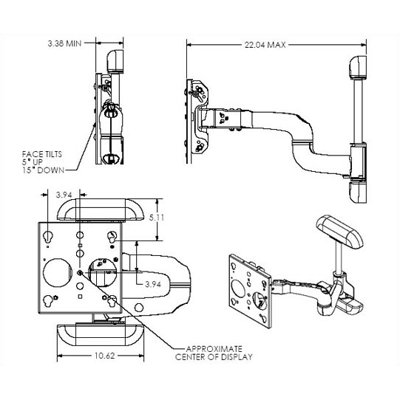

MWH Articulating LCD Wall Mount Technical Data
