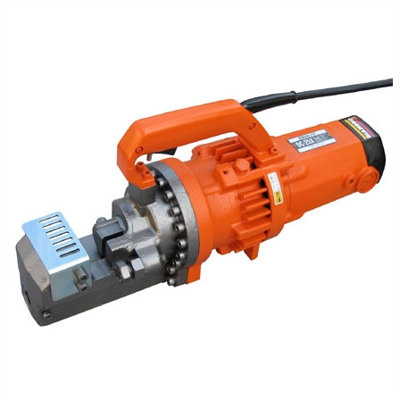

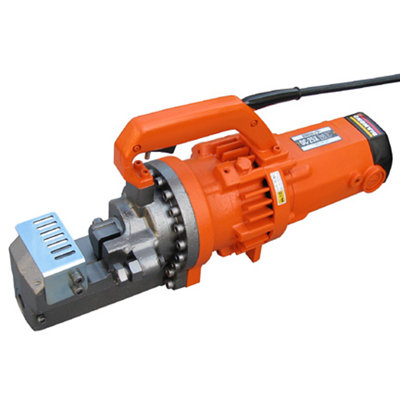

Benner Nawman Portable Electric Heavy Duty #8 Rebar Cutter

This portable heavy-duty rebar cutter will safely, efficiently, and cleanly cut rebar up to #8 (1”) diameter grade 60. The DC-25X Portable Heavy Duty #8 Rebar Cutter offers the fastest, safest, and most economical way to cut rebar on the job.

Features:

• Cold-cutting shear - no sparks or flame
• Works great on epoxy coated rebar
• Self-contained electric/hydraulic unit
• Ideal for small fabrication shop, especially if used with the CWS-2025 Work Station
• Locking trigger switch: enable cutter to be operated with a foot pedal switch and our GFI protected electrical outlet
• Also cuts chains, bolts and rods
• No trailing hoses to snare equipment or workers’ feet
• Safety relief valve for retracting piston
• Cutting guard
• Steel carrying case
• Tool kit & hydraulic oil
• Backed up a no-nonsense one (1) year warranty

Specifications:

• Maximum Cutting Diameter: 1” #8 Rebar (25mm) Grade 60
• Cutting Speed: 5 Seconds
• Cutting Pressure: 30 Tons
• Voltage/Amperage: 115V 50/60 Hz/12 Amps
• Weight: 49.6 lbs (22.5 kg)
• Dimensions: 20” L (515mm) x 5.9” W (150mm) x 9.8” H (250mm)

Rebar Cutting Workstation for DC-25X

This WorkStation is the perfect height for increasing your rebar cutting production. It’s designed to securely hold the DIAMOND model DC-20WH or DC-25X rebar cutters. Now you can operate your portable rebar cutter hands free with just a foot switch (sold seperately). The DC-20WH or DC-25X rebar cutters can be removed for use in most portable applications.

Features:

• Sturdy design with a 12-gauge heavy-duty galvanized sheet metal worktop
• Designed for stationary mounting of the DC-20WH or DC-25X rebar cutters
• Includes an electrical duplex & foot pedal outlet for hands free rebar cutter operation with an optional foot pedal (1BR5130 foot pedal sold separately)
• The rebar cutter can be mounted in a stationary position in the WorkStation or easily removed for use in any portable application (just unbolt & unplug)
• Modular design allows for other WorkStations to be bolted together
• Shipped partially assembled complete with hardware and instructions
• Rebar cutters and foot operated switch are sold separately

Specifications:

• Rebar Cutter Mounting: Two Heavy-duty U-bolts and Hardware Included
• Power Box Supplied: Electrical Outlet 115v 15 Amp Duplex
• Assembled Weight: 125 lbs (57 kg)
• Overall Dimensions: 48” L x 38” W x 35” H (1220mm x 965mm x 889mm)

DC-25X Rebar Cutter Tune-Up Kit

Don't just replace the cutting blocks; Maintain it right with a Tune-up Kit. Tune-Up Kits are available for all Benner Nawman/DIAMOND rebar cutter models, and contain the routine maintenance parts that should be periodically checked and replaced. This kit doesn't contain any internal replacement pump parts.

Features:

• DC-25X Rebar Cutter Tune-Up Kit
• A set of cutting blocks
• The cap bolts and washers for fastening the cutting blocks
• A quart of hydraulic oil
• Stopper Bolt with spring
• A set of the electrical motor carbon brushes
• Handling instruction booklet

RB-25X Cutting Blocks (Set of 2)

• Set of two for DC-25X Portable Electric Heavy Duty #8 Rebar Cutter (no cap bolts)

RB-25X/75 Cutting Blocks (Set of 2)

• Set of two “Grade 75” cutting blocks for DC-25X (no cap bolts)
