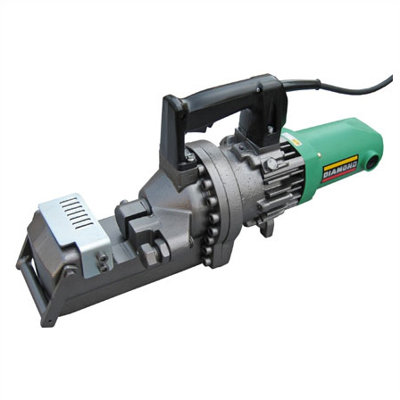

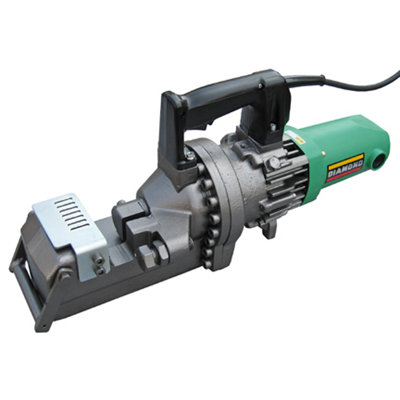

Benner Nawman Portable Electric Heavy Duty #10 Rebar Cutter

This portable heavy-duty rebar cutter will safely, efficiently, and cleanly cut rebar up to #10 (1.25”) diameter grade 60. The DC-32WH Portable Heavy Duty #10 Rebar Cutter offers the fastest, safest, and most economical way to cut rebar on the job.

Features:

• Cold-cutting shear - no sparks or flame
• Works great on epoxy coated rebar
• Self-contained electric/hydraulic unit
• Ideal for bridge and highway work, and in small rebar fabrication shops
• Also cuts chains, bolts and rods
• No trailing hoses to snare equipment or workers’ feet
• Long-life cutting blocks
• Superior forged housing
• Precision-balanced armature
• Double insulated electrical motor
• Two point lifting
• Compatible with the DBD-32X bender on a stand, in a WorkStation table and on a trailer with a DBD-32X bender

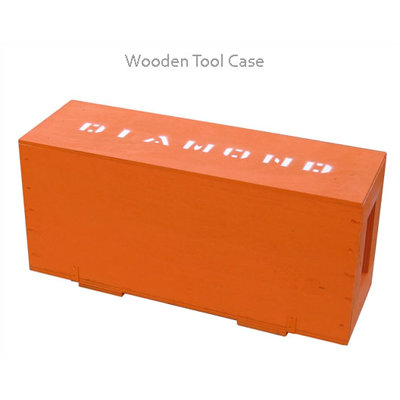

• Wooden carrying case
• Tool kit & hydraulic oil
• Backed up a no-nonsense one (1) year warranty

Specifications:

• Maximum Cutting Diameter: 1.25” #10 Rebar (32mm) Grade 60
• Cutting Speed: 7 Seconds
• Cutting Pressure: 45 Tons
• Voltage/Amperage: 115V 50/60 Hz/18 Amps
• Weight: 79 lbs (35.8 kg)
• Dimensions: 23.1” L (591mm) x 7” W (180mm) x 10.6” H (272mm)

DC-32WH Rebar Cutter Tune-Up Kit

Don't just replace the cutting blocks; Maintain it right with a Tune-up Kit. Tune-Up Kits are available for all Benner Nawman/DIAMOND rebar cutter models, and contain the routine maintenance parts that should be periodically checked and replaced. This kit doesn't contain any internal replacement pump parts.

Features:

• DC-32WH Rebar Cutter Tune-Up Kit
• A set of cutting blocks
• The cap bolts and washers for fastening the cutting blocks
• A quart of hydraulic oil
• Stopper Bolt with spring
• A set of the electrical motor carbon brushes
• Handling instruction booklet

RB-32WH Cutting Blocks (Set of 2)

• Set of two for DC-32WH Portable Electric Heavy Duty #10 Rebar Cutter (no cap bolts)
