SKU #: OBD3498

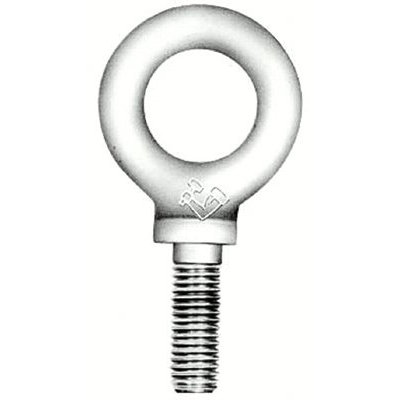

Armstrong Tools Shoulder Pattern Eye Bolts - eye bolt shoulder pattern 7/16 x 1-3/
(View all from Armstrong Tools
)
Product Details
- This item features:
- Drop forged are quenched and tempered for optimum strength
- Furnished with Unified National Coarse (U.N.C.) threads
- Special threads and lengths
- Material: Forged Carbon Steel
- Type: Eye Bolt-Shouldered
- Quantity: 1 per box
- Testing and approvals:
- Manufactured in accordance with the latest revision of ANSI/ASME B18.15
- Proof tested in accordance with the applicable ASTM, NACM, OSHA, and AISI/ASME requirements
| Model Code | Model Description |
| AA | Thread - TPI or Pitch:1 1/2 in - 6 UNC, Eye Inner Diam:2 1/2 in, Eye Outer Size:5 3/16 in, Load (Max) @ Angle:21700 lb @ 0°, 10500 lb @ 30°, 7200 lb @ 45°, 6100 lb @ 60°, 5500 lb @ 90°, Wt.:6.44 lb |
| AB | Thread - TPI or Pitch:1 1/4 in - 7 UNC, Eye Inner Diam:2 3/16 in, Eye Outer Size:4 7/16 in, Load (Max) @ Angle:15000 lb @ 0°, 7000 lb @ 30°, 5200 lb @ 45°, 4200 lb @ 60°, 3700 lb @ 90°, Wt.:3.83 lb |
| AC | Thread - TPI or Pitch:1 1/8 in - 7 UNC, Eye Inner Diam:2 in, Eye Outer Size:4 in, Load (Max) @ Angle:11800 lb @ 0°, 5500 lb @ 30°, 4500 lb @ 45°, 3850 lb @ 60°, 3400 lb @ 90°, Wt.:2.92 lb |
| AD | Thread - TPI or Pitch:1 3/4 in - 5 UNC, Eye Inner Diam:2 7/8 in, Eye Outer Size:6 1/16 in, Load (Max) @ Angle:29500 lb @ 0°, 14000 lb @ 30°, 10500 lb @ 45°, 8300 lb @ 60°, 7400 lb @ 90°, Wt.:11.92 lb |
| AE | Thread - TPI or Pitch:1 in - 8 UNC, Eye Inner Diam:1 13/16 in, Eye Outer Size:3 9/16 in, Load (Max) @ Angle:9500 lb @ 0°, 5000 lb @ 30°, 3600 lb @ 45°, 2800 lb @ 60°, 2400 lb @ 90°, Wt.:2.09 lb |
| AF | Thread - TPI or Pitch:1/2 in - 13 UNC, Eye Inner Diam:1 3/16 in, Eye Outer Size:2 1/16 in, Load (Max) @ Angle:2600 lb @ 0°, 1200 lb @ 30°, 650 lb @ 45°, 600 lb @ 60°, 525 lb @ 90°, Wt.:0.31 lb |
| AG | Thread - TPI or Pitch:1/4 in - 20 UNC, Eye Inner Diam:3/4 in, Eye Outer Size:1 3/16 in, Load (Max) @ Angle:500 lb @ 0°, 75 lb @ 30°, Wt.:0.05 lb |
| AH | Thread - TPI or Pitch:2 in - 4.5 UNC, Eye Inner Diam:3 1/4 in, Eye Outer Size:6 7/8 in, Load (Max) @ Angle:38500 lb @ 0°, 18000 lb @ 30°, 13500 lb @ 45°, 11000 lb @ 60°, 9750 lb @ 90°, Wt.:14.55 lb |
| AI | Thread - TPI or Pitch:3/4 in - 10 UNC, Eye Inner Diam:1 1/2 in, Eye Outer Size:2 13/16 in, Load (Max) @ Angle:6000 lb @ 0°, 3200 lb @ 30°, 2200 lb @ 45°, 1450 lb @ 60°, 1200 lb @ 90°, Wt.:0.83 lb |
| AJ | Thread - TPI or Pitch:3/8 in - 16 UNC, Eye Inner Diam:1 in, Eye Outer Size:1 21/32 in, Load (Max) @ Angle:1400 lb @ 0°, 650 lb @ 30°, 350 lb @ 45°, 325 lb @ 60°, 275 lb @ 90°, Wt.:0.13 lb |
| AK | Thread - TPI or Pitch:5/16 in - 18 UNC, Eye Inner Diam:7/8 in, Eye Outer Size:1 7/16 in, Load (Max) @ Angle:800 lb @ 0°, 225 lb @ 30°, Wt.:0.08 lb |
| AL | Thread - TPI or Pitch:5/8 in - 11 UNC, Eye Inner Diam:1 3/8 in, Eye Outer Size:2 1/2 in, Load (Max) @ Angle:4000 lb @ 0°, 2000 lb @ 30°, 1200 lb @ 45°, 950 lb @ 60°, 800 lb @ 90°, Wt.:0.59 lb |
| AM | Thread - TPI or Pitch:7/16 in - 14 UNC, Eye Inner Diam:1 3/32 in, Eye Outer Size:1 27/32 in, Load (Max) @ Angle:2000 lb @ 0°, 1000 lb @ 30°, 500 lb @ 45°, 450 lb @ 60°, 400 lb @ 90°, Wt.:0.20 lb |
| AN | Thread - TPI or Pitch:7/8 in - 9 UNC, Eye Inner Diam:1 11/16 in, Eye Outer Size:3 1/4 in, Load (Max) @ Angle:7200 lb @ 0°, 3800 lb @ 30°, 2500 lb @ 45°, 2000 lb @ 60°, 1650 lb @ 90°, Wt.:1.36 lb |
| AO | Thread - TPI or Pitch:9/16 in - 12 UNC, Eye Inner Diam:1 9/32 in, Eye Outer Size:2 9/32 in, Load (Max) @ Angle:3000 lb @ 0°, 1600 lb @ 30°, 900 lb @ 45°, 750 lb @ 60°, 600 lb @ 90°, Wt.:0.41 lb |
Shipping Info
Weight, Dimensions & Additional Features
| Item: | Dimensions: | Weight: |
|---|---|---|
| Shoulder Pattern Eye Bolts - eye bolt shoulder pattern 7/16 x 1-3/ | Unavailable | 0.2 lbs |
Additional Features
| Product Category: | Rope |
| Type: | Chain And Hooks |
