Part #: 12-024
SKU #: OBD1635

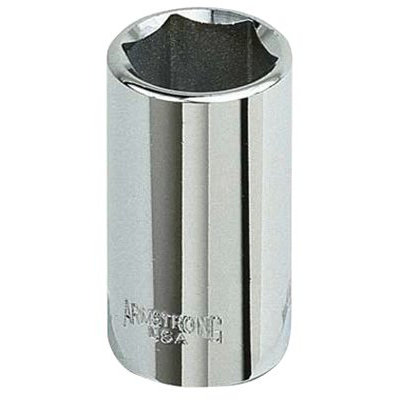

Armstrong Tools 1/2" Dr. Standard Sockets - 1/2" dr socket 3/4" opg6-pt std c

(

View all from Armstrong Tools

)

Write the first review
$20.99
rewards ?
Earn $0.63

Free Shipping on orders over $49.00
Order in the next and have this item delivered Free by ! More
Delivery Estimates
Guaranteed Delivery By December 24th

Items with the 12/24 Guarantee will be delivered to addresses in the lower 48 states on or before December 24, 2012. This offer does not apply to Alaska, Hawaii, Puerto Rico or Canada.

Any purchase between now and 12/25 can be returned through 1/30.

Qty:
Registry
Wish List

Share:

Product Details
    This item features:
  • Hardened for extra strength
  • "Lobular" design exerts force on flats of fasteners
  • Chamfered opening slips easily over fasteners and holds securely
  • Prevents rounding of fasteners' corners
  • Thin wall design fits into tight spots
  • Through hole in drive square for secure attachment to power drivers
  • Drive Size: 1/2 in
  • Drive Type: Square
  • Material: Cold Formed Steel
    Testing and approvals:
  • Meets ANSI Spec. B107.1
  • Meets Federal Standards GGG-W-641e
  • Meets ANSI B107.5m



Len. = Overall Length



Len. = Overall Length


Model Code  Model Description
AANo. of Points:12, Opening Size:1 1/16 in, Head Width:1.410 in (drive side), 1.410 in (opening side), Overall Length:1.580 in, Measuring System:Inch, Locking Type:Ball, Finish:Chrome, Wt.:0.43 lb
ABNo. of Points:12, Opening Size:1 1/16 in, Head Width:1.410 in (drive side), 1.410 in (opening side), Overall Length:1.580 in, Measuring System:Inch, Locking Type:Pin, Finish:Black Oxide, Wt.:0.43 lb
ACNo. of Points:12, Opening Size:1 1/2 in, Head Width:2 in (drive side), 2 in (opening side), Overall Length:2.187 in, Measuring System:Inch, Locking Type:Ball, Finish:Chrome, Wt.:1.08 lb
ADNo. of Points:12, Opening Size:1 1/2 in, Head Width:2 in (drive side), 2 in (opening side), Overall Length:2.190 in, Measuring System:Inch, Locking Type:Pin, Finish:Black Oxide, Wt.:1.06 lb
AENo. of Points:12, Opening Size:1 1/4 in, Head Width:1.650 in (drive side), 1.650 in (opening side), Overall Length:1.715 in, Measuring System:Inch, Locking Type:Ball, Finish:Chrome, Wt.:0.83 lb
AFNo. of Points:12, Opening Size:1 1/4 in, Head Width:1.650 in (drive side), 1.650 in (opening side), Overall Length:1.720 in, Measuring System:Inch, Locking Type:Pin, Finish:Black Oxide, Wt.:0.83 lb
AGNo. of Points:12, Opening Size:1 1/8 in, Head Width:1.490 in (drive side), 1.490 in (opening side), Overall Length:1.640 in, Measuring System:Inch, Locking Type:Ball, Finish:Chrome, Wt.:1/2 lb
AHNo. of Points:12, Opening Size:1 1/8 in, Head Width:1.490 in (drive side), 1.490 in (opening side), Overall Length:1.640 in, Measuring System:Inch, Locking Type:Pin, Finish:Black Oxide, Wt.:1/2 lb
AINo. of Points:12, Opening Size:1 3/16 in, Head Width:1.563 in (drive side), 1.563 in (opening side), Overall Length:1.720 in, Measuring System:Inch, Locking Type:Ball, Finish:Chrome, Wt.:0.60 lb
AJNo. of Points:12, Opening Size:1 3/8 in, Head Width:1.937 in (drive side), 1.937 in (opening side), Overall Length:2 1/8 in, Measuring System:Inch, Locking Type:Pin, Finish:Black Oxide, Wt.:0.90 lb
AKNo. of Points:12, Opening Size:1 5/16 in, Head Width:1 3/4 in (drive side), 1 3/4 in (opening side), Overall Length:2.060 in, Measuring System:Inch, Locking Type:Pin, Finish:Black Oxide, Wt.:0.86 lb
ALNo. of Points:12, Opening Size:1 5/16 in, Head Width:1 3/4 in (drive side), 1 3/4 in (opening side), Overall Length:2.063 in, Measuring System:Inch, Locking Type:Ball, Finish:Chrome, Wt.:0.84 lb
AMNo. of Points:12, Opening Size:1 7/16 in, Head Width:1.937 in (drive side), 1.937 in (opening side), Overall Length:2.190 in, Measuring System:Inch, Locking Type:Ball, Finish:Chrome, Wt.:0.99 lb
ANNo. of Points:12, Opening Size:1 7/16 in, Head Width:1.937 in (drive side), 1.937 in (opening side), Overall Length:2.190 in, Measuring System:Inch, Locking Type:Pin, Finish:Black Oxide, Wt.:0.98 lb
AONUnit Sold is in measure of 1 Box
See something odd? Report it here.

Shipping Info

Free Shipping on orders over $49.00
Ships to:
Delivery Estimates
Ships via UPS/FedEx (Learn More)
Weight, Dimensions & Additional Features
Item: Dimensions: Weight:
1/2" Dr. Standard Sockets - 1/2" dr socket 3/4" opg6-pt std c Unavailable 0.21 lbs

Additional Features
Product Category:Sockets
