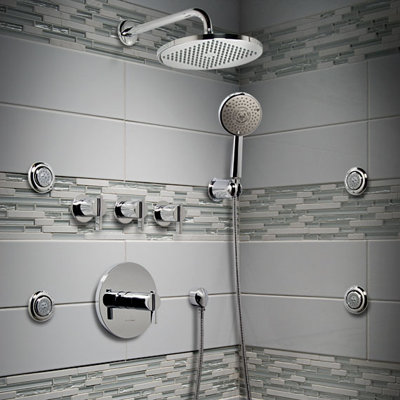

American Standard Berwick Central Thermostatic Shower Faucet Trim with Lever Handles

The Berwick Collection from American Standard ties fluid elegance with defined precision to complete this full line of bathroom faucets. With ribbon like style, this collection remains steadily classic, yet is reminiscent of sleek, streaming design. Berwick's contemporary, but subtle flair is sure to bring a renewed look to any bathroom.

Features:

• Brass casting
• Wax thermostatic unit
• Includes hot limit safety stop
• Escutcheon plate is stamped brass
• Back to back capable: hot and cold can be reversed
• Available with 0.5" or 0.75" NPT inlets and outlets
• Maximum temperature limit is 112 degrees F
• Single unit contains one handle which sets the desired temperature
• Temperature is maintained by a wax element moving a shuttle valve between hot and cold
• Lever handle
• Cast brass valve body
• Spring-loaded check valves
• Integrated stop valves
• Valve has a high flow rate ideal for multiple outlet installations

Specifications:

• ADA compliant
• ANSI A117.1 certified
• ASME A112.18.1 certified
• NSF 61/Section 9 and Annex G certified
• CSA B 125 certified
• Overall dimensions: 7.94" H x 7.94" W x 7.19" D
