Sometimes a regular mortar mixer simply can't keep up on the big jobs. For a high capacity mixer that works as hard as you do, look no further than Crown Construction Equipment. With a maintenance free seal design and hydraulic drive and dump capability, Crown's high capacity mixers are built with the needs of the serious masonry contractor in mind.
Lifetime Warranty- All Crown mixers feature a lifetime warranty on the drum bearing and seals
Rubber Torsion Suspension- Standard on the 12S and optional on most mixers, Crown's innovative rubber torsion suspension provides the industry's smoothest towing and handling
High Strength Frame- Newly designed frame provides improved durability and stronger support in the areas where you need it. The raised frame construction allows for convenient dumping for a wheel-barrow
Shear Pin Protection System- Crowns exclusive Shear Pin Protection system shields the gear reducer and engine from potential damage should an engaged mixer be impeded by a shovel or other foreign object.
Two Piece Safety Grill- Why two pieces when the competition uses only one? The two piece design is stronger, safer and easier to use than a one-piece grill and will not damage the drum
Fixed Engine Mount- Crown's fixed engine mount design eliminates engine movement and bounce during transit, resulting in less wear and longer engine life
Rugged Tow Bar- Retractable, removable and easily stores away when not in use for safer operation
Self Latching Drum- Crown's self-latching drum lock is knee operated, freeing both hands for optional dumping control
Swing Away Hood- Sturdy vented engine housing comes standard with a swing-away hood providing easy engine access
High Speed Roller Bearings- All towable models come standard with high speed taper roller bearings and heavy duty axles for years of trouble free towing
Bag capacity: 3.5 - 4
Cubic feet: 12
Charging height: 58"
Overall length: (tow pole in): 84"
Overall length: (tow pole out): 104.5"
Tires (pneumatic): B78x13
Spiral blade option
Dimensions: 56.5"H x 52.5"W
Repair Parts Manual Mortar Mixers
Ships via Self Service Truck Delivery
back to top

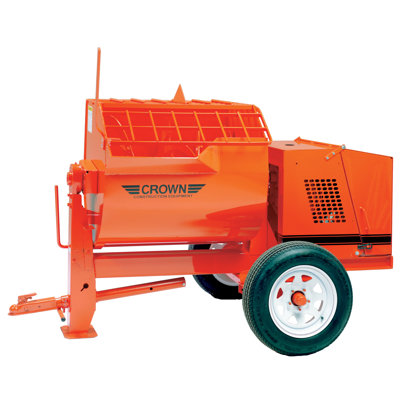

|12S-E5/1 - 12 cu ft Heavy-Duty Mortar Mixer w/ 5 HP 1 Phase Electric
||56.5" H x 52.5" W
|Product Category:||Mixing Equipment|
